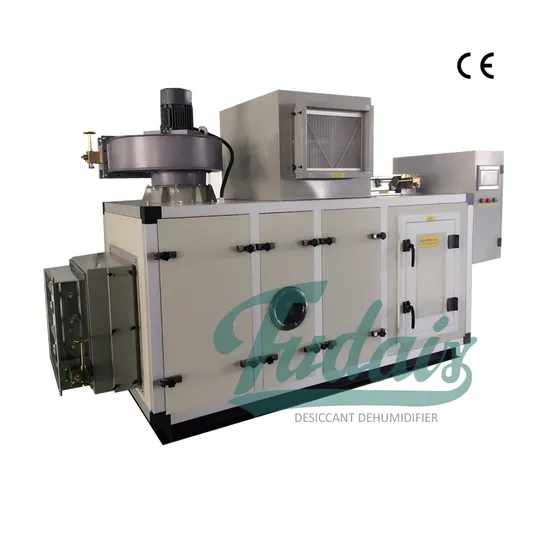

Hot Sale Desiccant Wheel Dehumidifier ZCS-3000

Product Description

Main Parameters:

Model	ZCS-3000
Process Airflow(m3/h)	3000
Reactivation Airflow(m3/h)	1000
Rated Dehumidification Capacity(kg/h)	21.6
Reactivation Heating Power(kw)	18
Process Fan Power(kw)	3.0
Reactivation Fan Power(kw)	1.1
Driving Motor Power(kw)	0.1
Installed Power(kw)	22.2
Overall Dimension(mm)	2550*1000*1760
Weight (kg)	450
Power Supply	380V/3P/50Hz

Operating Principles:

Supply Air Stream
Outside air is drawn into the unit using the supply fan.
The warm, moist outside air first passes through filters and then the cooling coil where it is cooled.
The air then goes through the desiccant wheel where the air is dehumidified and the temperature is raised.
At last the air is delivered directly to the space or into an existing air handler.
Exhaust Air Stream
Exhaust air is used to provide energy recovery for the desiccant wheel and is drawn into the unit using the exhaust fan.
The air filtered and then heated and humidified during the energy recovery process.
The air is then heated while passing through the regeneration coil.
The heated air removes the moisture that the desiccant wheel adsorbs from the process air stream.

Our Advantages:

- High dehumidifying capacity
- Dry air with super ow humidity can be easily obtained
- It is able to supply dry air with super low dew point less than -70 Celsius degree.
- Its dehumidification performance is more marked under the environment of low temperature and low humidity.
- Easy to operate and management, low operating cost
- Long ife and durable
- Complete equipment model, perfect dehumidification function
- Environment protection, pollution-free

Human-machine Interface:

Refrigeration System for Option:

Application:

> War Industry, Scientific Research, Electric Power Transportation > Lithium Battery Industry, Biotechnology Pharmaceutical Industry > Chemical, Daily Chemical Industry, Food Beverage Industry > Safety Glazing Material Industry, Tyre and Rubber Industry > Medical Instrument, Vegetables Frozen, Precise Instrument > Wood Goods, Shipbuilding Painting Industry, Kinds of Storages

Certificates:

---
