Drilling Machine with Tapping Function Zs-40/Zs-40p Bench Drilling for Metal

US$1,000.00-1,500.00 1 Piece (MOQ)

Basic Info.

Model NO.
ZS-40/ZS-40P
Layout
Vertical
Controlling Mode
Artificial
Hole Diameter
<50mm
Automatic Grade
Manual
Precision
High Precision
Certification
CE, RoHS, ISO 9001
Condition
New
Transport Package
Wood Case
Specification
CE ISO9001 RoHS
Trademark
L&T
Origin
Tengzhou China
HS Code
84592900
Production Capacity
100 PC/Month

Product Description

Drilling Machine with Tapping Function ZS-40/ZS-40P Bench Drilling for Metal
Feature:
The machine adopt gear driving and the driving moment is strong.
The machine has the six series speed variable feature, which can be widely fit for processing to kinds of common hard& soft material.
The head can rotated 360 degree and can tilted ±45 degree,reliable and easy job can be done.
The motor drive by the gear, which overcome the short coming of the belt skid.
According to the customer demand the machine can drill, enlarge, ream and tap the multi-holes by the multi-spindles.
ZS40 without coolant system, ZS40P with coolant system
Technical parameter:
Model ZS-40/ZS-40P
Max. Drilling capacity mm (Cast iron) 40 (Steel)32
Max. Tapping capacity mm (Cast iron) M32 (Steel)M24
Diameter of column mm 115
Spindle travel mm 120
Distance from spindle axis to column mm 272.5
Max. Distance spindle nose to base mm 800
Spindle taper MT4

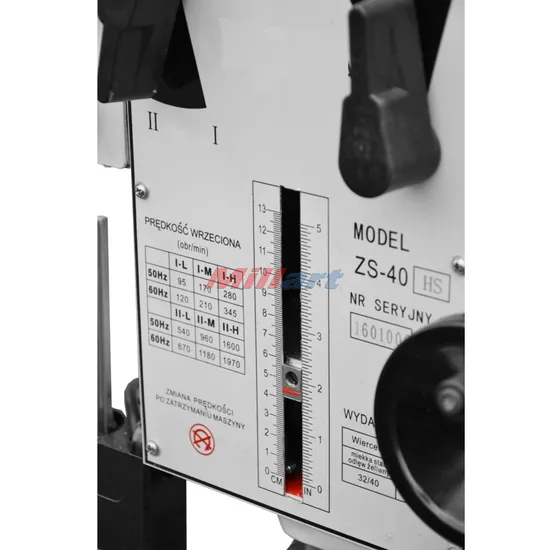

Spindle speeds r/min 95 170 280 540 960 1600
Spindle speeds series 6
Dimension of base mm 635*460/ 690*520
Motor w Single 750 Triple1100
G.W/N.W kg 290/250 / 310/270
Packing dimension cm 75x73x146


Standard accessories:
Drill chuck,
Reduction sleeve and arbor
Draw bar
Wrench
Operate manual
Optional accessories:
Machine vice
Spindle guard
Coolant system
Multi-spindles
