Rika Rk200-04 Economical Photovoltaic PV Solar Radiation Sensor

Product Description

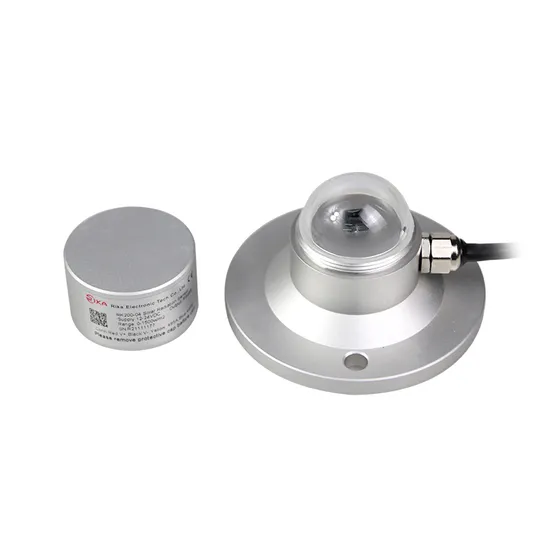

RIKA RK200-04 Silicon-cell Principle Solar Energy Pyranometer Solar Radiation Sensor
Product Description RK200-04 Solar Radiation Sensor is designed on basis of silicon-cell principle. It is mainly used for measuring solar radiation within 300-3000nm wavelength. If the sensing face is downwards, it can test the reflected radiation and solar radiation on the incident to the inclined plane. If shad is added, it can test the scattered?radiation. It is widely used to monitor the solar radiation in meteorology, solar energy, agriculture, construction materials aging and atmospheric pollution and etc..
FEATURES
Designed on silicon-cell principle
No moving parts, no?maintenance, can work in any altitude
High sensitivity
Low power consumption
Light weight, long service life
Used as sunshine duration sensor
APPLICATIONS
Meteorology
Agriculture
Construction materials aging monitoring
Air pollution monitoring
Solar energy
SPECIFICATIONS

Item	SPECIFICATIONS
Spectral range	300~1100nm
Supply	5V,12-24VDC
Range	0-1500W/m2
Resolution	1W/m2
Output	0-5V,4-20mA,RS485
Response time	≤5s
Cosine correction	≤±10%(Solar elevation angle=10°)
Non-linear	≤±3%
Temperature effect	±0.08%/ºC
Stability	≤±2%/year
Operating Temperature	-40ºC-+80ºC
Ingress Protection	IP65
Weight(unpacked)	420g
Shell material	Aluminum alloy
Storage Condition	10ºC-60ºC@20%-90%RH

OUTPUT CHARACTERISTICS
Output of Radiation(W/m2)= Voltage output value(μv)/sensitivity?coefficient(μv*w-1*m2),
Each product is with one sensitivity coefficient respectively (It is mentioned on the product's label)
Detailed Photos

Application

Testimonial
Company Profile

Our Service
1, Price : EXW, FOB, CIF
2, Payment: 100% T/T in advance, west union or paypal.
3, Packing : standard export packing , including operating user manuals.
4, Leading time :5-7 working days after payment.
5, Shipment: Express (FedEx, DHL, UPS & TNT) or forwarder (by sea, air)
6. 7 days free replace & 1 year free repair for quality warranty
FAQ
Q: Are you the final manufacturer?
A: Yes, We are SENSOR manufacturer and exporter in china with 10+ years experience and with the factory authorized by SGS.
Q: Do you offer the OEM service?
A: Yes, we can offer OEM service and design the logo marking for you. But the minimum quantity is 10pcs for the first order .
Q: Do you offer free samples?
A: Sorry , we do not offer free samples . You should pay for the samples and freight cost.
Q: What payment ways do you accept?
A: You can pay us by T/T , PayPal , and West Union .
Q: What is your delivery time?
A: It is in 6-8 working days since the payment confirmed . If quantity is more than 100pcs /order, it will need extra 3-5 working days .
Q: What is your normal delivery way?
A: Goods will be sent by DHL / FEDEX / UPS / EMS / TNT / or other proposed forwarders.
Q: How is your quality assurance service?
A: Our service is free exchange within one month and 12 months quality guarantee if non-manmade damage.
Q: Could we make a visit to your factory?
A: Yes, you are welcomed . But before that, we will do the visiting investigation.

---
