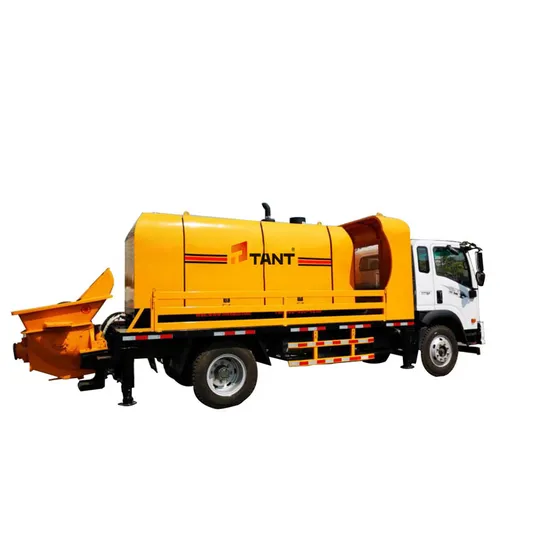

Truck Mounted Concrete Pump Hbc80.13.176r Pump 150m High

Product Description

Truck Mounted Concrete Pump Professional manufacturer in Changsha, Hunan
20 years+ Production & Export Experience
Solid technical foundation and independent innovation to ensure product quality
Well-know brand components from Germany, Italy, Japan, France etc. strive for the best combination of mechanical parts
Technical parameters

Model		HBC60.13.130RS	HBC80.16.176RS	HBC100.23.186RS
Chassis System	Weight	12000KGS	12000KGS	13000KGS
	Chassis Model	Dongfeng Tianjin	Dongfeng Tianjin	HOWO TX
	Fuel	Diesel	Diesel	Diesel
	Displacement/ Power	5985ml/ 90kw	5985ml/ 134kw	5900ml/ 350hp
	Min.Change Radius	9m	9m	9.5m
	Engine Model	Weichai 180Ti	Weichai 180Ti	Man power
	Axis Distance	4700mm	4700mm	4700mm
Upper Part	Diesel Engine Brand/ Model	Weichai 176kw	Weichai 176kw	WP8.350E61
	Delivery cylinder dia.x stroke	200X1600mm	200X1600mm	230X1800mm
	System Oil Pressure	32Mpa	32Mpa	32Mpa
	Theory Pumping Pressure	13Mpa	16Mpa	23Mpa
	Hydraulic Pump	Rexroth 190 in Germany	Rexroth 260 in Germany	Rexroth 260 in Germany
	Theory Concrete Output	60	80	100
Overall size	LxWxH	8900x2450x2180 mm	8900x2450x3180 mm	9300x2500x2950

Chassis, equipment, components etc. all can be further negotiated according to your requirements.


Package

Construction case
FAQ
1.Q:Are you factory or trading company?
A: We are factory in Changsha, Hunan.
2.Q: What is your main oil pump brand?
A: Germany Rexroth or Korea Kawasaki.
3.Q: The motor power is the electrical or diesel?
A: Both type. The power of electric type apply to 380V 50Hz.
4.Q: How about guarantee period?
A: 1 year for structure parts. We strictly follow the warranty terms.
5.Q: What is the payment terms?
A: 30% advance payment and the rest should be paid before delivery by T/T or by L/C.
6.Q: Maintenance and After-sales service?
A: We provide video technical support, and we can send technicians to your country if necessary. We have local after service team in some areas.

---
