US$12,000.00-38,000.00
|
1 Set
(MOQ)
|
Basic Info.
Movement Method
Linear Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
High-End CNC Machine Tools
Certification
GS, CE, ISO 9001
CNC
Siemens 828dor According to Client Request
Servo Motor
Siemensor According to Client Request
Transport Package
6000*2200*2550
Production Capacity
40/Month
Packaging & Delivery
Package Size
6000.00cm * 2200.00cm * 2550.00cm
Package Gross Weight
400.000kg
Product Description
Product Description

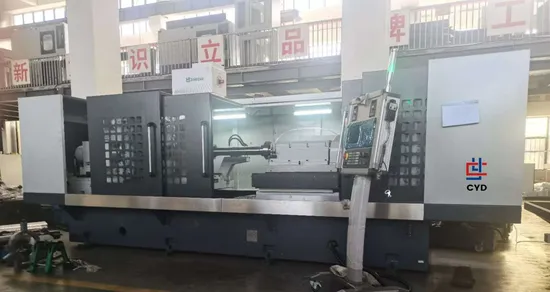

MKS-4 DEEP HOLE INTERNAL GRINDING MACHINE TOOL
1, The machine is a two axis two linkage cnc deep hole internal grinder, which adopts german siemens cnc system.
2, The programmable numerical control system can realize the functions of automatic feed, automatic fine grinding,
rough, wheel dressing, auto matic compensation, automatic tool return and so on. It can grind internal hole, step hole,
taper hole, inner and outer end face.
Detailed Photos
| Model Name | MKS-4 | MKS-500 | MKS-750 | MKS-1000 | MKS-1200 |
| ID grinding scope(mm) | 20-200 | 30-300 | 80-500 | 100-400 | 100-300 |
| Max.Grinding depth(mm) | 350 | 500 | 750 | 1000 | 1200 |
| Work piece box rotate angle(°) | +15,-15 | +10,-10 | +3,-5 | +2,-3 | +2,-2 |
| Max.Work piece rotate diameter(mm) | 300 | 400 | 600 | 500 | 400 |
| Xaxis positioning accuracy(um) | 4 | 4 | 5 | 5 | 5 |
| Xaxis repetitive positioning accuracy(um) | 2 | 2 | 3 | 3 | 3 |
| Z axis positioning accuracy(um) | 5 | 5 | 6 | 8 | 10 |
| Repetitive positioning accuracy(um) | 3 | 3 | 4 | 5 | 6 |
| Maximum moving speed of worktable(m/min) | 5 | 5 | 5 | 5 | 5 |
| Max.Stroke of worktable(mm) | 600 | 800 | 1100 | 1200 | 1400 |
| Rotation speed of work piece(r/min) | 0-600 | 0-600 | 0-500 | 0-500 | 0-500 |
| Rotation speed of grinding wheel(r/min) | 0-12000 | 0-10000 | 0-10000 | 0-8000 | 0-5000 |
| Maximum running speed of feed mechanism(m/min) | 5 | 5 | 5 | 5 | 5 |
| Weight of machine tool(kg) | 4200 | 4800 | 7500 | 8300 | 9200 |
| Grinding roundness(um) | 2 | 3 | 4 | 5 | 6 |
| Cylindricity(um) | 4 | 5 | 6 | 8 | 12 |
| Surface roughness(um) | 0.4 | 0.4 | 0.5 | 0.6 | 0.6 |
>>
