Paper Mill Pickup Felt Forming Board Hig Low Vacuum Ceramic Suction Box Cover Hydrofoil Dewatering Element for Paper Machine

Product Description

Product Description

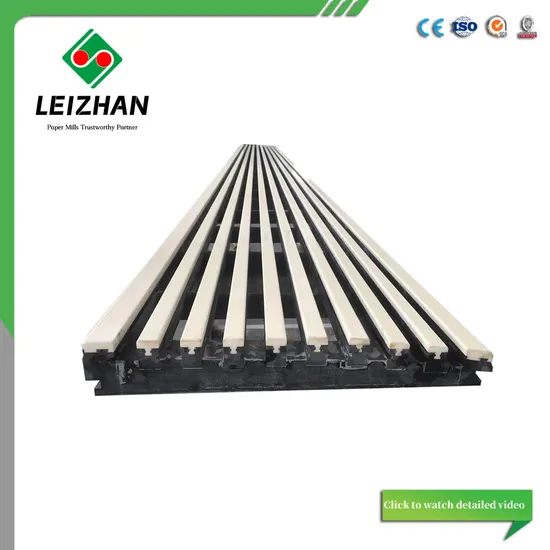

Paper Machine Forming Box/ Forming Cover/ Forming Plate/ board/ Foils / Strips
The special design structure of the forming plate/board is that it can be installed near the breast roller, or the breast roller scraper can be installed. It can move forwards and backwards, and can be adjusted to the best spraying point of the slurry, so that it can achieve a good sheet forming and dewatering effect. . The forming board is composed of a box body and a panel. The box body is made of stainless steel.The box body is annealed or moved to eliminate stress, reduce deformation, so as to ensure quality, and the surface is sandblasted to make the appearance beautiful and generous.
Detailed Photos
Product Parameters
We will be based on different paper machine and different types of paper ,supply strong applicability of the dehydration components to you.For you to create a high - grade paper condition.

Alumina content	95%	99%
Al2O3(%)	≥95	≥99
Density(g/cm3)	≥3.70	≥3.85
Absorption(%)	<0.1<>	<0.1<>
Bending strength(MPa)	>250	>300
Thermal Conductivity(W/m· k)	20-24	28-30
Thermal Expansion Coefficient(×10-6/K)	7.6-8	8-8.4
Using highest temperature(°C)	1400	1600
Dielectric constantΣ(1MHZ)	8-9	9-10
