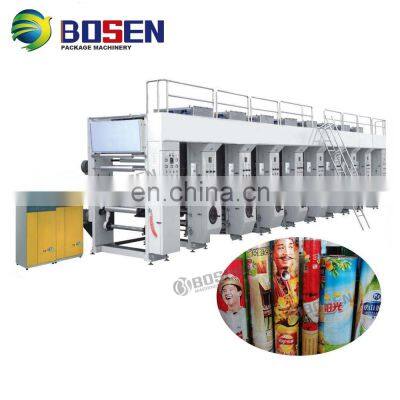

High Quality High Speed Rotogravure Printing Machine

Product Description

Product Description
Product Description
Product Application
This machine is used for paper、 Foil、Non-woven Fabric、 BOPP、PET、PVG、PE、LDPE and Paper etc with good printing performance of rolling material for multicolor continuous printing
Economic Rotagravure 5-50m/min
Medium Speed type 50-80m/min
High Speed type 120-150m/min
Computer Color Register 180m/min

Model	BSH-RO600	BSH-RO800	BSH-RO1000
Print width	600mm	800mm	1000mm
Print speed	60-150m/min	60-150m/min	60-150m/min
Diameter of material roll	600mm	600m	600mm
Colors	8 colors	8 colors	8 colors
Total power	150kw	160kw	160kw
Weight	18000kg	20000kg	22000kg
Dimensions	14800x2150x2650mm	14800x2350x2650mm	14800x2650x2650mm

Main Features
1. The whole machine is fixed by permutation composition, according to the customers' requirement the printing color unit can be increased or decreased as well as the cover printing mechanism can be added.
2. The mainframe adopts vector frequency speed controller.
3. Each unit of computer flashed system is controlled by separating microprocessor. It can adjust the flashed deviation quickly and precisely.
4. with display of flashed deviation, correcting for system comprehensive deviation as well as super-different slamming function.
5. Double photo-electricity checking; improve the whole checking and adjustment speed.
6. The winding and the winding traction adopt vector frequency motor and moment motor controller.
7. Wing is adopted with frequency motor with magnetic powder clutch to wind.
8. The printing pressure cylinders, discharging traction pressure cylinders and winding traction pressure cylinders adopt pneumatic controller.
9. Pneumatic back pressure shifting blade.
10. Ink circulation system.
11. Gas expansion style loading and unloading shaft.
12. Winding and rewinding are both double working mechanisms to make the material complete with non-stop.
Detailed Images
Certifications
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery

Packaging
Size	according to colors and width
Weight	according to colors and width
Packaging Details	The normal package film for packing or pack it according to customers special request.
