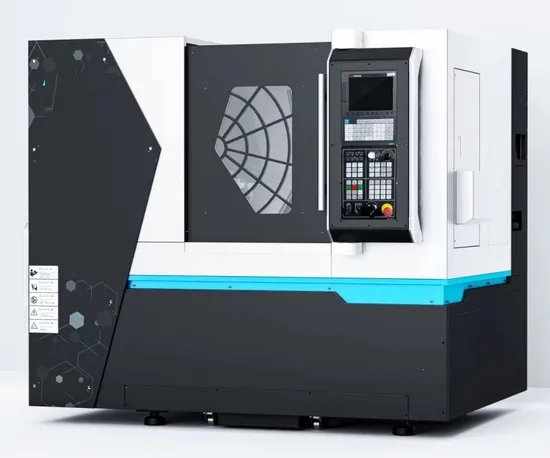

30 Degree Slant Bed CNC Lathe Turning Machine

Product Description

Machine Tool Features
The TS42GD inclined bed CNC lathe is a brand new product designed and produced in response to market and development needs, based on our factory's years of experience in designing horizontal CNC lathes. The main performance indicators of this product have reached the international advanced level, including energy conservation and environmental protection. Compared with similar machine tools, it has the following characteristics:
1. High efficiency: Short processing cycle, reducing non cutting time;
2. High precision: excellent static and machining accuracy;
3. High spatial efficiency: smaller spaces can maximize their effectiveness;
4. The X/Z axis adopts three-point positioning ball screws with high positioning accuracy. The X/Z axis adopts a linear guide rail design, which increases the guide rail and higher dynamic and static loads, improving the rigidity of the machine tool.
This series of machine tools adopts an integrated structure of mechanical, electrical, and hydraulic components, with a compact and reasonable overall layout. Advanced finite element analysis software is used to analyze and optimize the entire machine, achieving optimal performance; The key purchased parts are selected from internationally renowned manufacturers' standard series products to ensure the accuracy and reliability of the machine tool. Therefore, this series of machine tools is particularly suitable for industries such as the automotive industry, motorcycle industry, electronics, and light industrial machinery to efficiently, massively, and precisely process rotating parts, with a machining accuracy of IT6 level,

Specification		TCK42D
Machining Capacity	Max. Swing over bed(mm)	φ420
	Max. Swing over carriage(mm)	Φ170
	X axis travel(mm)	300
	Z axis reavel(mm)	400
	Distance between spindle and tailstock (mm)	300-620
	Distance between spindle and turret(mm)	90-490(common spindle )/60-460(170 spindle unit)
	Max. Machining diameter(mm)	400
	X axis rapid feed (m/min)	18
	Z axis rapid feed (m/min)	20
	Minimum movement amount (mm)	0.001
	minimum detectable quantity (mm)	0.001
	Minimum setting unit (mm)	0.001
Spindle	Spindle	Common spindle
	Speed (rpm)	50-3000
	Spindle nose	A2-5
	Spindle bore diameter(mm)	φ48
Strcture	X axis Motor stopper specification (mm)	Φ110
	Zaxis Motor stopper specification (mm)	φ110
	Turret	Hydraulic servo turret
	Tool numbers	8
	Tool shank size (mm)	20X20
	Z axis guideway	Linear guideway
	X axis guideway	Linear guideway
	Bed slant	30°degree
	tailstock	Hydraulic lamping
Machin weight (kg)		2800
Overall size(LxWxH)(mm)		2070X1580X1780

---
