US$9,000.00-28,000.00
|
1 Set
(MOQ)
|
Basic Info.
Type
Volumetric Filling Machine
Automatic Grade
Fully Automatic
Filling Valve Head
Multi-Head
Feed Cylinder Structure
Single-Room Feeding
Filling Principle
Atmospheric Pressure
Packaging Container Lifting Structure
Pneumatic Lifting
Packaging Material
Plastic
Filling Material
Drinking Water/Mineral Water
Machine Material
304 Stainless Steel
Bottle Material
Pet Bottle
Certification
CE, ISO, SGS
Transport Package
Wooden Packaging
Production Capacity
100 Units/Year
Packaging & Delivery
Package Size
2600.00cm * 1900.00cm * 2200.00cm
Package Gross Weight
3500.000kg
Product Description
Automatic 3L-5L Gallon Bottle Beverage Drink Liquid Big Bottle Water Filling Plant Machine with Large Pet Bottle Purified Drinking Water
"3-10L Big bottled water filling production line From A-Z" Products Description

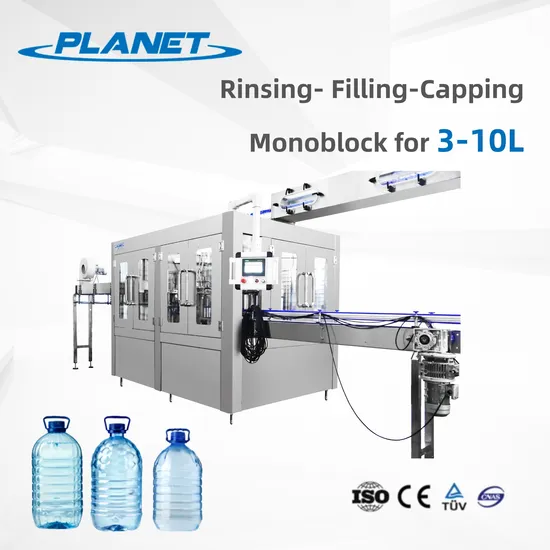

3-10L water filling machineThis washing filling capping machine is mainly used for Non-aerated carbon dioxide drink, such as mineral water, pure water and so on.The machine design is shorten the time for the drink material contact with outside, Increase the sanitation condition throughout economy benefit. It adopts hanging type conveying-bottle structure to make changing bottle model more convenient, faster and easier. The main machine adopts advanced PLC control technology. The key electric elements adopt international famous products.For different filling processes, different filling methods and different hygienic standards, Planet Machine provides filling solutions to meet various requirements.Product Paramenters
Containers and Specifications |
Project Name: Full Automatic Complete can 1000-5000bph Production Line | Pure water, mineral water etc. |
Material | Shape | Filling volume | Filling level(mm) | Neck type |
PET | round or spare bottle | 3-10L | Distance from bottle neckAccording request | As request |
Adjustable specifications of the can type | Middle Mould Based on bottle diameter ≤205mm can Height≤340mm |
Customers need to buy additional change-over parts for the different cans. If using square bottles, then bottle separating system will be added. |
Container Label & Control Mode | Packaging system | Palletizing system |
PVC Shrink Label Full Label/ Half Label Manual / Automaticc | Packing system | Min, Spec. | Manual Low position gantry palletizer Robot Palletizer High position gantry palletizer Single Arm Palletizer Manual Palletizer |
Manual Film shrinker Wrap Around packer Robert Packing Machine | 1*2 2*2
|
User Ambient Conditions | Temperature:0~4ºC;70~92ºC Humidity:No dew |
User Electrical Supply Specification | Voltage:380V±5%, 3phase; Frequency:50HZ±1% |
Machine layout
Product DetailsBottle Washing.Filling Parts.
- Into bottle way is air conveyor direct connection with bottle dial.
- All 304/316 stainless steel rinse heads, water spray style inject design, more save water consumption and more clean.
- 304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing.
- 304/316 stainless steel washing pump make the machine more durable. Conventional type filling.- 304/316 Stainless steel filling nozzle - Filling volume adjustable in fine rank, same liquid level after filling - All 304/316
stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean - 304/316 stainless steel filling pump -
Efficient spray nozzle rinse thoroughly and save water for flushing Bottle Capping.- Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during
capping
- All 304/316 stainless steel construction
- No bottle no capping
- Automatic stop when lack of bottle
- Capping effect is stable and reliable, Defective rate ≤0.2% Auxiliary Machinery
Bottle Blowing Molding Machine Water Treatment system
Capacity:Up to 24,000BPH 1T-50T/H hot melt glue opp labeling machine Shrink sleeve labeling machine
Capacity:6000 to 24,000BPH Capacity:6000 to 24,000BPH Shrink wrapping machine Case pack machine
capacity: 10-25 bags/min capacity: 10-25 box/min Company Profile
FAQ
HOW TO FIND PLANET MACHINE?
Search ******, Made in China, Google, Youtube and find suppliers and manufactrue and not traders
Visit exhibition in different countries
Send PLANET MACHINE an request and tell your basic inquiry
PLANET Machine sales manager will reply you in short time and add instant chatting tool
YOU ARE WELCOME TO OUR FACTORY AT ANY TIME.
If we can fullfill your request and you interested in our products, you may pay a visit to PLANET MACHINE site
The meaning of visiting supplier, because seeing is believing, PLANET MACHINE with own manufacture and developed& research team,we
can send you engineers and make sure your after sales service.
HOW TO GUARANTEE YOUR FUNDS TO BE SAFE AND DELIVERY TO BE ON TIME?
Through ****** letter guarantee service, it will ensure the on time delivery and the quality of the equipment you want to buy.
By letter of credit, you can lock the delivery time easily.
After the factory visit, You can ensure the facticity of our bank account.
SEE PLANET MACHINE HOW TO ENSURE THE QUALITY!
In order to ensure the accuracy of each part, we are equipped with a variety of professional processing equipment and we have
accumulated professional processing methods over the past years.
Each component before assembly needs strictly control by inspecting personnel.
Each assembly is in charged by a master who has working experience for more than 5 years
After all the equipment are completed, we will connect all the machines and run the full production line for at least 12 hours to
ensure the stable running in customers' factory
THE AFTER-SALE SERVICE OF PLANET MACHINE?
After finish the production, we will debug the production line, take photos, videos and send them to customers via mail or
instant tools
After the commissioning, we will package the equipment by standard export package for shipment.
According to the customer's request, we can arrange our engineers to customers' factory to do the installation and training.
Engineers, sales managers and after-sales service manager will form a after-sales team, online and off line, to follow the
customers' project.
>>
