Turret Slitter Rewinder Machine for Flexible Package Plastic Film, Laminating Film, BOPP Film

Product Description

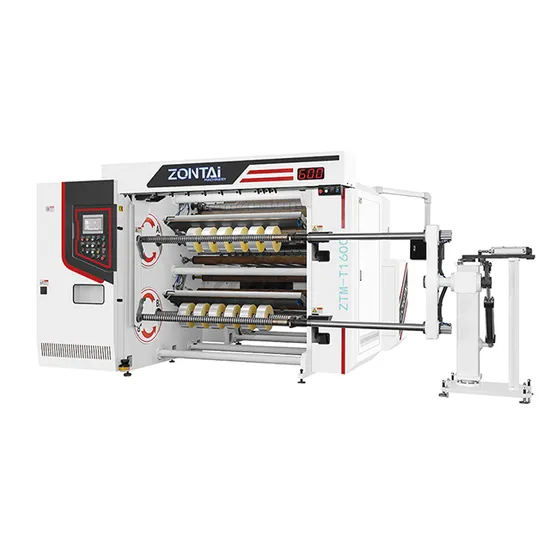

ZTM-T1300 Turret Slitter Rewinder Machine for Plastic film, laminated film, aluminum foil rolls
Features:
ZTM-T Series Automatic Double Turret High Speed Slitting Machine is leading model among domestic slitting machines; especially suits for high-end customers, functions are listed below:
1.Pneumatic cylinder automatically adjust unwinding width
2. Automatically loading by hydraulic system
3. 3 inch and 6 inch shaft-less unwinding
4. Air splicing table
5. Servo drive system
6. Closed-loop auto tension for unwinder
7. Intelligent Laser tube core positioning
8. Automatic razor knife adjusting system (Optional device)
9. Automatic circle knife adjusting system (Optional device)
10. Four sets rewinding pneumatic slip-shafts automatically changeover system
11. Automatically cutting rewinding roll system
12. Rewinding press roller automatically taper control system
13. Finished roll automatically unloading system
14. Rewinding shafts protection system while reel changing

Main parameters:

Unwind width range	Max1300mm
Unwind Paper core diameter	3" 6"
Unwind Max diameter	φ1200mm
Rewind Max diameter	φ600mm
Mechanical speed	500m/min
Rewind Paper tube diameter	3"
Rewind accuracy	±0.3mm
Rewind motor power	5.5KW*4 Sets
Unwind power	7.5KW
Traction motor power	5.5KW
Air blowing motor power	2.2KW
Tension control	PLC(Siemens)
Tension setup range	3-20kg
Material thickness range	12um-150um
Web guide control	E+L Germany

Optional:
1, Automatic knife moving system for razor knives or circular knives
2, Unwinder brake change to motor with loadcell controlled.
3, 6inch rings for rewinder shafts
Machine photos:
Our package:
Zontai in exhibitions:

---
