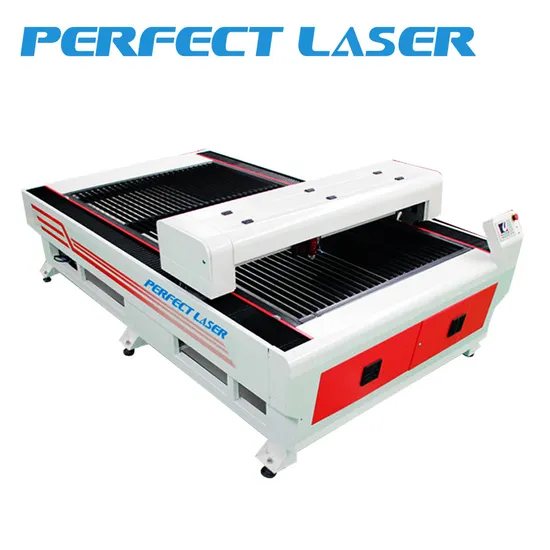

Perfect Laser 300W CNC Metal Steel Nonmetal Wood/MDF/Aryclic/PVC Chinese CO2 Laser Cutting Cutter Machine

Product Description

Perfect Laser 300W CNC Metal Steel Nonmetal Wood/MDF/Aryclic/PVC Chinese CO2 Laser Cutting Cutter Machine
(Model:PEDK-130250M)
Product Description
Mixed Co2 steel sheet cutter is a newly super technology, mainly used to cut both metal and non-metal machine. The cutting thickness of this industrial laser cutter can reach 1-2mm stainless steel, 1-3mm carbon steel, 20-30mm acrylic, 10-20mm wood, 0-10mm MDF.
The steel sheet cutter is a so good choice for user who has demand to cut 1-2mm thin metal material and thick non-metal materials by own this industrial laser cutter. One machine can fulfill all your demand. Saving much cost. It also can be called industrial laser cutter,MDF laser cut,acrylic cutter,steel sheet cutter,metal plate cutter.
Application
Application Industry:
Advertisement, arts and crafts, toys, car, mechanism, electron, as well as in trademarks, embroidery, clothing and other industries.

Advertisement material	Acrylic engraving cutting, plastic engraving and cutting, PVC boardengraving and cutting, rubber plate engraving, seal engraving, organic glass engraving, Plexiglas engraving, marble engraving, graniteengraving, Gum engraving, EVA materials engraving, paper engraving and cutting.
Wood material:	Wood engraving and cutting, MDF engraving, plywood cutting, bambooengraving.

Machine Details

Product Features
1) Mix Cutting: It supports both Metal and Non-Metal Cutting, can cut stainless steel, carbon steel, mild steel, also can cut acrylic, wood, MDF engraving and cutting.
2) Adopt 160w - 180w or 260W Laser Tube, high power, 10000 hours long life span.
3) Adopt Japan Imported Servo Motor and Ball Screw Transmission Rod, with fast speed and high precision.
4) Dynamic Auto-Focusing Metal Sheet Laser Cutting Head: When the metal sheet is not plain, the dynamic focus laser cutting head can adjust the focusing distance automatically.
5) Advanced LCD Touch Screen+ USB port+ DSP Offline Control, which can not only work without computer, but also connect to U disk, USB communication.
6) LCD Control System own 128M Big Memory, which can store files in the machine for engraving and cutting, compatible with AutoCAD, CorelDraw, Photoshop and some other kinds of graph disposal software.
7) Imported high precision linear guide rail and professional optical system, dustproof and lubricate, which improve the engraving quality and prolong machine lifetime.
8) Professional Strip work table, which meet the needs of diversified laser procession;
9) Water Cooling System with Alarm Protection, adopt CW-6000 Water Chiller with temperature display, which can avoid over burning, to protect the water circulation from electricity-off.
10) Equipped with luxury Consumables, Imported Focus Lens and reflect mirror, makes high efficiency and steady.
11) High speed stepper subdivision driver control, numeral timing, simulation quantum control laser power, little error, repetition high precision, engrave 1×1mm little English character perfect.
12) Red Light Pointer realizes the exact position without laser.
13) Matched Professional software is particularly designed and written for engraving and cutting, with high compatibility, support any computer operating system. Product Parameters

Model	PEDK-13090M	PEDK-130250M
Working Area	1300*900mm	1300*2500mm
Laser Power	150w	180w / 260w / 300w
Transmission Method & Driving System	1. Standard Machine use Belt Transmission + Chinese Top Brand "Leadshine" Step Motor and Driving System 2.Optional Machine use Ball Screw Transmission + Japan IMported Yaskawa Servo Motor and Driving System
Laser Type	CO2 Sealed Laser Tube, 10.6um
Cooling Type	Water Cooling, 150w-180w Machine use CW-5000 260w-300w Machine use CW-6000
Working Table	Stainless steel and knife table
Laser Output Control	(0-100% Set by Software )
Smallest Character Engraving	Chinese: 2.0mm*2.0mm, English Letter: 1.0mm*1.0mm
Highest Scanning Precision	4000DPI
Positioning Accuracy	±0.02mm/m
Positioning Speed	20m/min
Max. Cutting Thickness	40mm
Max. Cutting Speed	20m/min
Controlling Software	DSP Control System
Graphic Format Supported	BMP, PLT, DST, DXF, and AI, etc
Compatible Software	CORELDRAW, PHOTOSHOP, AUTOCAD, All type of AUTOCAD software
Drive System	High-precision 3-phase Stepper Motor
Auxiliary Equipment	Exhaust Fan and Air Exhaust Pipe
Controlling software	Off-computer controlling system
Working voltage	AC110-220V ±10%/10A,50-60HZ
Power	<2000W
Packing	Standard Plywood
Warranty	12 month for whole machine, 10 month for laser tubes
Training	VCD Training
Weight	1000 kgs

Packaging & Shipping
Remark
1. Payment terms: T/T, L/C, West Union.
2. Delivery lead time: 7-10 working days after receipt of the advance payment.
3. Delivery method: by sea or air shipment.
4. Packing: compound wooden cases with exporting standard
Training&Service
1. 12months Gurantee Period;
2. Free Online Consulting Service
3. Free Operation Tranining in our factory;
4. Detailed Operational Manual &Traning CD in English Version
Guarantee of Quality and After Sales-Service:
The guarantee period of quality shall be 12 months counting from the date on which the commodity arrives at the port of destination. Except the artificial damage and wearing parts, we are responsible for offering the fittings free of charge during the guarantee period, but you must send the damaged fittings to us by courier with your charge before we send back the alternative fittings to you. After the guarantee of quality period, the parts required to repair or change, if any, shall be paid FAQ

Please let us know following informations:
1.What kind of materials you want to cut ?
2.What is the mostly used thickness and what is the maximum thickness?
3. What is the MAX. dimension of your materials ?
4. After cut, what will be the metal used for? (application)
5. Are you an end user or reseller?
According to your above information,we'll recommend the most suitable machine to you.
To choose best machine for you, please kindly check and tell us:
1>the exact material you want to work with? (acrylic, wood,stainless steel iron etc)
2>The working size of the machine you demand?
3>For the laser power, we need know the cutting depth you demand?
5>The destination sea port you desire? Then we can check the shipping cost for you. Company Profile
