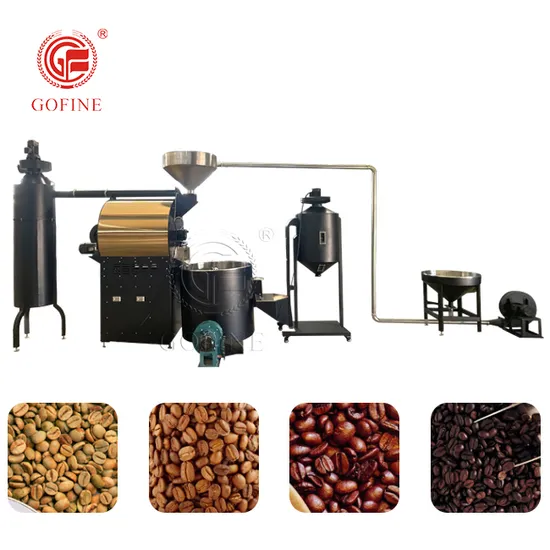

Customized Roasting Curve Coffee Bean Roasting Factory 30kg Coffee Roaster Machine

Product Description

Product Description
The new upgraded coffee roaster supports electric/gas heating, with multiple models from 3kg to 200kg.
It meets the various roasting needs of coffee shops, families, hotels, and coffee factories.
Each batch of coffee beans only takes 15 minutes to roast, and you can connect to a computer to monitor the roasting curve in real time. Personalized roasting is achieved.

Why choose Gofine coffee roaster?
1. The coffee roaster is made of high-quality imported steel, which will not deform under high temperature heating.
2. The feed port is enlarged to ensure that there is no leakage or blockage of beans.
3. One-button preheating function, supporting gas/electric heating methods.
4. Double-drum roasting design, heating speed 25ºC/minute.
5. Equipped with dual temperature meter, temperature control is more precise.
6. USB Bluetooth connection, intelligent recording of roasting curve, can be reproduced.
7. Equipped with multiple visual windows and mahogany handle sampler, observe the roasting situation at any time.
8. Cyclone dust collector to ensure rapid discharge of smoke and bean skin.
9. Independent stirring cooling plate, complete cooling in 1-2 minutes, and achieve continuous roasting.
10. There are "zero" black spots on the surface of roasted coffee beans, which improves the taste of coffee.
Working Process of Coffee Roasting Machine
Coffee roasters generate heat through an internal heating element that heats up quickly.
Green coffee beans enter the roasting chamber through a hopper or feed port. The drum inside the roaster rotates continuously to heat the coffee beans evenly. The roaster can observe the color changes of the coffee beans through the visual window. to judge the progress of baking. At the same time, the coffee roaster is equipped with an intelligent temperature control system and is connected to Bluetooth to observe the roasting curve in real-time. After roasting, the roasted beans can be manually discharged from the discharge port. The cooling plate is continuously rotated to stir and ventilate. Quickly lowers the temperature of cooked beans to prevent over-roasting and overcooking.
Product Parameters

Specifucation	1kg	3kg	10kg	15kg	20kg	30kg	60kg	120kg
Model	GF-1	GF-3	GF-10	GF-15	GF-20	GF-30	GF-60	GF-120
Heating method	gas heating/electric heating		gas heating
Hourly capacity (middle to dark roast)	4-6kgs/h	12-18kgs/h	35-45kgs/h	40-60kgs/h	60-80kgs/h	90-120kgs/h	180-240kgs/h	360-480kgs/h
Batch capacity	500g-1000g	3kg	10kg	15kg	20kg	30kg	60kg	120kg
Rated voltage (customizable)	110/220v		220-380v			380v
Rated Frequency	50-60hz
Rated power	130w(gas)/3130w(electric)	580w(gas)/4580w(electric)	1100w	1410w	1500w	1670w	3600w	4500w
Number of motors	3	4	4	4	4	5	5	5
Heating power	0.35kg/hr	0.5kg/hr	1.8kg/hr	2.2kg/hr	2.6kg/hr	3.2kg/hr	5kg/hr	6.5kg/hr
Roasting time	10-15mins/batch		15-20mins/batch
Weight	82kg	216kg	465kg	600kg	680kg	1472kg	1950kg	2500kg
Dimensions (l*w*h)	140*45*98cm	143*100*170cm	240*78*185cm	256*96*210cm	278*98*226cm	305*115*265cm	400*305*310cm	455*415*340cm
Color	Silver Gray/black or Upon Request

Detailed Photos
Brand-new technology upgrade
Best user experience
Faster heat conduction and heat locking function, blue flame burner known for energy saving and emission reduction, shorter and more accurate roasting time.
The whole machine design is more ergonomic, bringing you a more wonderful coffee bean roasting experience.
Packaging & Shipping
About Us
FAQ
1. Why choose us?
Gofine Machine is a professional equipment manufacturer, integrating scientific research, production, sales, import and export, with rich experience.
2. How can we guarantee the quality?
We have a strict quality control system to ensure the factory quality of each product.
3. What can you buy from us?
Gofine Machine produces coffee roasters, coffee grinders, automatic packaging machines, and other coffee-supporting machinery.
4. What services can we provide?
We have professional overseas installers responsible for installation, commissioning and free training. Professional personnel are waiting for you online 24 hours a day.
5. How to choose equipment?
We have a professional technical team to customize reasonable solutions for you and support customized services.

---
