| NINGBO CHIMA WINCH CO., LTD. | |||
| WANGJIAQIAO VILLAGE, DONGQIAO TOWN, YINZHOU DISTRICT, NINGBO, 315157 ZHEJIANG,CHINA | |||
| 4WD WINCH QUOTATION | |||
| Customer: | Quote Date: Aug. 22th, 2019 | ||
| Supplier: NINGBO CHIMA WINCH CO., LTD | |||
| FROM | Ningbo | TO | |
| TERMS OF PAYMENT | TT | PACKING | EXPORT CARTON |
| TIME OF SHIPMENT | FOB Ningbo | ||
| Product info. | Points | Picture | |

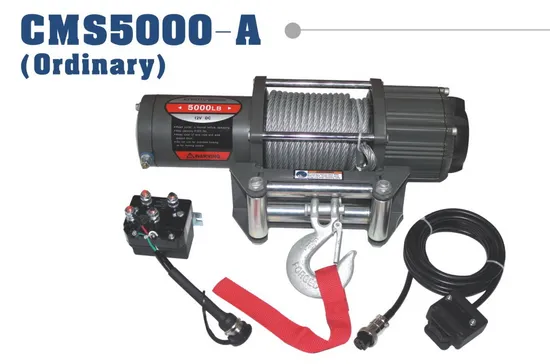

| Model | CMS5000-A | ||
| Unit Price(USD) | $160.00-$162.00 | ||
| Performance | 12VDC | ||
| Single line rated pull | 5000lb(2272kg) | ||
| Motor | 1.5hp,Permanent Magnet | ||
| Control | Handlebar mounted Mini-rocker switch | ||
| Gear train | 3 Stage Planetary | ||
| Gear reduction ratio | 166:1 | ||
| Braking Action | Mechanical brake is available | ||
| Drum size | Diameter 2.0"(50.8mm) Length 4.69"(119mm) | ||
| Cable | 15.2m of 6.4mm diameter | ||
| Fairlead | 4-Way Roller Fairlead | ||
| Remote Control | Included | ||
| Battery | Recommended:650CCA minimum for winching | ||
| Battery Leads | 2 gauge,72"(1.83m) | ||
| NW/GW | 33kg/35kg(2pc) | ||
| Overall dimentions | (LxWxH)(395x117x117.5mm) | ||
| Mounting Bolt Pattern | |||
| MEAS | |||
