Product Description
Product Description

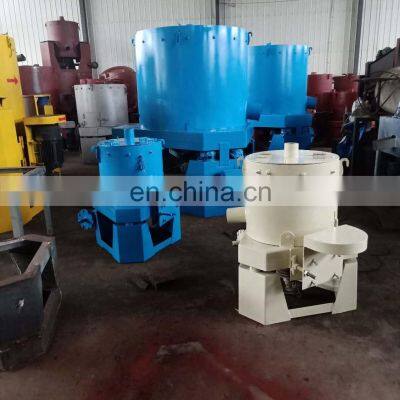

Products DescriptionGold And Alluvial Sand Processing Plant Works:1.Ore Feeding : use hopper with grizzly bar to regulate the feeding size to drum scrubber is below 75mm2.Washing：use drum scrubber to remove the sticky clay from the gold bearing ore3.Screening: use two stage vibrating screen to get three fraction output :-6mm,6-12mm,12-75mm4.Concentrating: use centrifugal concentrator to recovery -6mm gold partilcle ,6-12mm would go to sluice box .ADVANTAGE:1. Mature gold machine line for different proposals(rich experience on this field from 1992 years, done many projects oversea).We made gold washing plant,gold gravity separator line,gold flotation machine line,alluvial sand washing plant,blanket sand separaot line,gold tailing cip and cil plant,Heap leaching and so on. 2. Cost Control (Have lots of site experience, from equipments, installation to personnel site working, we can make a most optimal case to you). 3. EPC-Turkey Project (We have enough capability to make EPC-Turkey project, which will be convenient for you). 4.Free customized proposal, drawings and technical support before orderingMain equipmentNo.ItemBrandNotes1Feeder HC2Gold washing machineHC3gold centrifugal machineHC4Shaking tableHC5Sluice box HC6High frequency furnaceHCCase of gold washing plantAlluvial sand washing palnt in Peur 200tpd capacityThis client is from Peru, where toxic chemicals are not allowed in gold processing plant. considering that his material has mud , we make this alluvial sand washing plant with 200tpd capacitysemi-automatic centrifuge line in TanzaniaThis client is from Tanzania , customer's raw material is alluvial sand and there has been a gold placer production line project in operation for seven years. Therefore, according to the customer's site situation, we made Suggestions on his replacement of new placer gold project and selected two semi-automatic centrifuges to work at the same time, saving the budget and increasing the outputDetails Imagesgold washing machine washing machine has single or double layers circular sieve to classify two to three kinds of different grades sand and stone whichshould be clearly deslimed. It is mainly used for washing ore before beneficiation operation system, and improving the ore gradefor next processing step. it can be used for manganese ore, iron ore, limestone, tungsten, and silica ore, and so on..Gold centrifugal line Centrifugal gold concentrator is a relatively new type of gravity concentration apparatus. The machines utilise the principles of a centrifuge to enhance the gravitational force experienced by feed particles to effect separation based on particle density. The key components of the unit are a cone shaped "concentrate" bowl, rotated at high speed by an electric motor and a pressurized water jacket encompassing the bowl. Feed material, typically from a ball mill discharge or cyclone underflow bleed, is fed as aslurry toward the centre of the bowl from above. The feed slurry contacts the base plate of the vessel and due to its rotation, isthrust outward. Sluice BoxSluice Box is the largest mining sluice box in the world, and it is also extensible, portable and can be posted anywhere in theworld. Designed for small pumps, suitable for remote areas. This equipment can run a great deal of work compared to other markets.Processing 100% unclassified material can reach 5-8 tons per hour.(about 300 bucket per hour)Packing and deliverySpecificationModelCapacity (t/hr)Feeding Size(mm)Feeding Density(%)Power Requirement(kw)Cone Rotate SpeedWater Required(t/h)Dimension(mm)STLB200.5-1.00-2.50-501.18001.5-2.0800*560*710STLB302.0-3.00-40-502.26004.0-6.01280*1030*1135STLB608.0-12.00-60-507.546010.0-15.01850*1550*1600STLB8010.0-20.00-60-501540017.0-25.02300*1800*2200STLB10050-1000-60-501836040.0-60.02400*2400*2250Company Profile
>>
