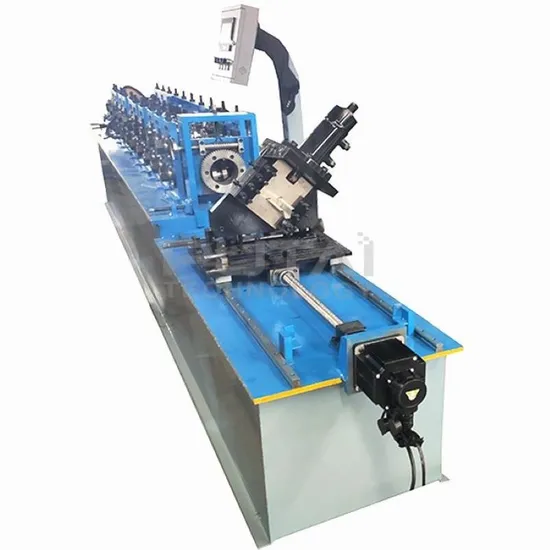

Omega Profile Furring Channel Light Keel Steel Roll Forming Machine

Product Description

Omega Profile Furring Channel Light Keel Steel Roll Forming Machine

Roller stations:	12 rows
Roller Material:	Cr12‚ Forging‚ lathe finishing‚ quenching‚ Heat treatment HRC58-6
Transmission Type:	Gear drive
Steel structure:	Integral plate welding steel structure
Thickness of Structure	Raw material is 25mm, after polishing ,may 23-24mm,Q235 Raw material is 30mm, after polishing ,may 28-29mm,Q235
Cutting&Hydraulic type	servo motor punching and cutting
Shaft diameter & material:	Shaft diameter: 50mm/Spacer :70mm Material:45# steel Machine tool processing heat treatment, then grinding
Total Power:	25KW

Voltage:	380V /3phase/ 50 HZ (or as your requirement)
Cutting system:	Servo tracking cutting system
Length measurement:	Encoder:Omron(international brand)
Productivity:	45m/min
Material & Thickness:	Material:GI, PPGI; Material Thickness: 0.8mm

Uncoiler
A .Functional Configuration
Put the steel coil on it for feeding raw material
B .Technical parameters
Loading capacity:3 Ton
Coil ID:φ450mm~550mm
Coil W idth:200mm
Roller
A. Material: Cr12
B. Forging, lathe finishing, quenching HRC58-60,
polishing
C. Roller inner diameter: Φ40mm, outer diameter: minΦ
90mm
D. Longer service life
Shaft
A.Material: high grade 45# steel material
B.Forging, lathe finishing, quenching 58-60 degree,
polishing
C.High precision
Main Motor
A.Electric Motor:5.5kw,China Brand
B.Powerful and running steady, when speed is high, it
does not shake.
C.Fixed at the bottom of the frame or beside the frame
Hydraulic Station
A. Oil cylinder and oil pump adopt national standard rod oil
cylinder, easy to purchase all over the world.
B. The motor is a national standard copper core, universal
around the world.
C.station power:5.5KW
Drive Type: Gear
Electric control section
A.China Brand control Panel and system to
ensure high speed, stability, precision and lifetime.
B. Input the length, and pcs, it will control the machine
working automatically
C.Encoder brand: Omron
Low voltage electrical apparatus: Chint
Frequency converter: ZONCN
System: Light steel keel machine special customization
system,single control or two shape running at the same time
A.Servo system cutting
B.Servo motor: 1.5kw
C.Knife material: Cr12, heat treatment HRC 58-60, high
wear-resisting knife
Front view and top view of CU Channel forming machine :
Factory
Packing & Delivery
Cetifications
FAQ:
1)Q: Do you have after sales support? A: Yes, we are happy to give advice and we also have skilled technicians available across the world. We need your machines running in order to keep your business running. 2)Q: How do your machines compare with other big companies in this market? A: We are up to date with the latest technology and improve our machines accordingly 3)Q: How does your factory do regarding quality control? A: Quality is priority. we always attach great importance to quality control from the very beginning to the end of the production. Every product will be fully assembled and carefully tested before it's packed for shipment. 4) Q: Do you sell only standard machines? A: No, most of our machines are built according to customers specifications, using top brand name components 5) Q: Can you make the machine according to my design or proto type? A: Yes. We have an experienced team for working out the most suitable design and production plan for the machine that you are going to book with us
6)Q: How can we be assured that you will deliver us quality machine with spare parts? A: 1. Customers to send the technical people to our factory for checking the quality. 2.We can send the technicians to the buyer`s factory for the installation of the machine. 3.Good aftersales-service, its free of charge during the warranty period. 7)Q:What can you do if the machine broken? A:Our machine's warranty period is 12months,if the broken parts can't repair,we can send the new parts replace the broken parts freel, but you need pay the express cost yourself. if after warranty period, we can look at negotiation to solve the problems, and we supply the technical support for the whole life of the equipment. 8:How to play order? A: Inquiry---confirm the profile drawings and price----confirm the PI---arrange the deposit ---then OK 9:How to visit our company? A: Fly to Tianjin airport, we will pick up you at the airpport.

---
