Single Phase 110V 1kVA Dynamic Voltage Restorer for Semiconductor Manufacturer with Super Capacitor DVR

Product Description

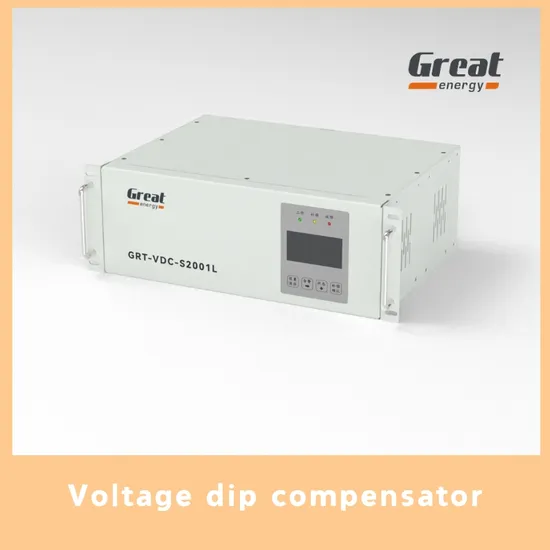

Voltage Dip Compensator
GRT-VDC is a Voltage Dip Compensation using ultracapacitorsas energy storage components, which can effectively solve the voltage sag.
Application Industry
Semiconductor industry
automobile manufacturing industry
iron and steel manufacturing industry
petrochemical industry
chemical fiber printing and etc industry
manufacturing industry
real estate industry and industrial and commercial industry,
hospital and pharmaceutical industry
GRT-VDC Features
Various types of products make installation flexible.
(RACK TYPE/WALL MOUNTED TYPE/CABINET TYPE)
1.Fast response: correction in less than 1 millisec.
2.Efficient > 98% at norminal power.
3.By-pass function device exit does not affect power.
4.Record alarm information in real time.
5.Input and output voltage can be set.
6.Low temperature.
7.Quiet operation.
8.Maintenance-free: base on physical phenomenon.
9.High cycle life,long shelf life.
10.Deep protection: correction range from -100% to 0.

Specification Sheet Single phase

Model	Size (kVA)	Rated current (A)	Dimensions W*D*H(mm)	Weight (kg)
GRT-VDC-S1(2)001	1	10.0-8.3 / 5.0-4.2	400*150*300	17
GRT-VDC-S1(2)002	2	20.0-16.7 / 10.0-8.3	400*180*450	33
GRT-VDC-S1(2)003	3	30.0-25.0 / 15.0-12.5	400*200*450	37
GRT-VDC-S1(2)005	5	50.0-41.7 / 25.0-20.8	430*250*500	50
GRT-VDC-S1(2)010	10	100. 0-83.3 / 50.0-41.7	500*300*500	60
GRT-VDC-S1(2)020	20	200.0-166.7 / 100.0-83.3	550*350*600	80
GRT-VDC-S1(2)030	30	300.0-250.0 / 150.0-125.0	600*400*700	100

Three-phase

Model	Size (kVA)	Rated current (A)	Dimensions W*D*H(mm)	Weight (kg)
GRT-VDC-T2(4)001	1	2.9-2.4 / 1.5-1.3	500*800*300	50
GRT-VDC-T2(4)005	5	14.4-12.0 / 7.6-6.6	550*1000*400	100
GRT-VDC-T2(4)010	10	28.9-24.1 / 15.2-13.1	600*1045*425	130
GRT-VDC-T2(4)010 (Wall mounted type)	10	28.9-24.1 / 15.2-13.1	584*270*800	105
GRT-VDC-T2(4)015	15	43.3-36.1 / 22.8-19.7	600*1100*400	160
GRT-VDC-T2(4)015 (Wall mounted type)	15	43.3-36.1 / 22.8-19.7	584*270*800	105
GRT-VDC-T2(4)020	20	57.7-48.1 / 30.4-26.2	650*1205*380	200

GRT-VDC-T2(4)030	30	86.6-72.2 / 45.6-39.4	650*1205*460	300
GRT-VDC-T2(4)050	50	144.3-120.3 / 76.0-65.6	800*1400*500	500
GRT-VDC-T2(4)100	100	288.7-240.6 / 151.9-131.2	2*(1000*2200*1000)	710
GRT-VDC-T2(4)200	200	577.4-481.1 / 303.9-262.4	2*(1000*2200*1000)	1000
GRT-VDC-T4400	400	1154.7-962.3 / 607.7-524.9	2*(1000*2200*1000)	1500
GRT-VDC-T4600	600	1732.1-1443.4 / 911.6-787.3	3*(1000*2200*1000)	1650
GRT-VDC-T4800	800	2309.4-1924.5 / 1215.5-1049.7	3*(1000*2200*1000)	1800
GRT-VDC-T41M0	1000	2886.8-2405.6 / 1519.3-1312.2	4*(1000*2200*1000)	2000

Certifications

exhibitions
Company Profile
Shenzhen Great Energy Technology Co., Ltd. ,established in 1998,mastering the core technology of power electronics, is the core device and solution provider in the power transmission and distribution system.in the field of power quality, energy storage and customized power supply have reached the world-leading level.
Our products are used in all provinces in China, and exported to other countries, widely serving power,communications, transportation, petrochemical, semiconductor,automotive industry,new energy and other industries.products and solutions have been applied to power supply systems of TCL CSOT,MRT,Shenzhen International Airport,Huawei,BOE,Volkswagen,Nissan,PINGAN IFC,TIANMA.
Great energy Technology has passed the CE,ISO9001, ISO14001, ISO45001, and has won the honorary titles of national high-tech enterprise, "Specialized and Special new" Enterprises in Shenzhen.
Why Choose US?
(1)Professional team for after-sale service 7*24
(2)Experienced R & D team and profesional sales team
(3)OEM & ODM service, we will evaluate, design and produce your customized products
(4)Offer confidentiality agreement to protect your profit, with us your business will be in safe your money in safe.
FAQ
1 Q:Are you manufacturer?
We are a professional power supply manufacturer with high reputation in this field.
2.Q.Do you have certificates for your products?
Yes,we have CE, standard certifications.
3. Q:Can we print our logo?
We can print your logo on both product and package.
4. Q: How is your production management and quality control system?
All our product process follows up ISO9001. Each process has technical instructors.
The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
