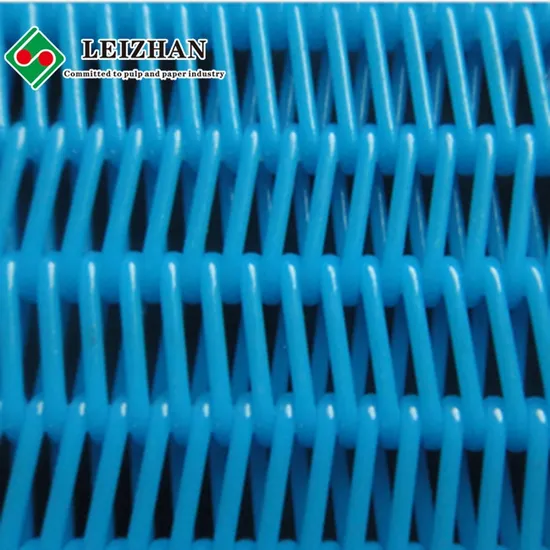

Industrial Filter Belt Paper Machine Spiral Dryer Fabric

Product Description

Product Description
The dry screen plays an important role in papermaking machine. It is a high-breathing fabric applied to the dryer section of the long-wire paper machine and the board machine. It is made of various plastic synthetic fibers as the main raw material and is processed by weaving and heat setting. Special resin treatment is carried out as needed, and the joints of the net are also advanced. The main function of the dryer screen is to improve the contact between the paper sheet and the dryer during the process of guiding the wet paper sheet through the drying section, to obtain a high yield, low energy consumption, and good performance on the paper surface. This requires the dry mesh to have sufficient strength, proper ventilation, good size, stability and smooth mesh surface.
Detailed Photos

Product Parameters

Polyester Dryer Fabric
Weaving Kind	Fabric Model	Wire Diameter mm		Density(root/cm)		Tensile strength(N/cm)			Air Permeability		Weight Kg/m2	Thickness mm
		Warp	Weft	Warp	Weft	Surface	Joint	Socket Screw-ring interface	M3/m2h	CFM
Round wire Dryer fabric	22503	0.50	0.50	24	12	2000	1400	900	8000	500	1.06	2.0
	24503		0.50	25	12	2000	1400	900	7000	438	1.10	2.0
	22504		0.50	24	12	2000	1400	900	12000	750	1.26	2.1
	24504		0.50	26	12	2100	1500	950	11000	680	1.3	2.1
	4106		0.50	23	12.6	2200	1500	900	6800	425	1.2	1.75
	4106-1		0.30 / 0.70	22.8	12.6	2200	1500	900	8000	500	1.3	1.80
	26508	0.35	0.50	28	12.5	1680	1400	800	4640	290	0.82	1.1
Flat wire dryer fabric	4106-2	0.35x0.68	0.50	19.6	15.7	2200	1500	900	5500	345	1.10	1.62
	15505	0.25x0.40	0.50	17	13.5	2000	1500	900	6500	406	0.75	0.83
	20654	0.33x0.52	0.65	22	7.5	2000	1400	800	10000	625	1.02	1.35
	18688	0.30x0.58	0.35	20	18.5	2000	1400	800	1600	100	1.2	1.40
			0.68
	16904	0.29x1.06	0.90	15.2	8.6	2600	1800	1500	1920	120	1.33	1.54

Packaging & Shipping
Company Profile
We are a China industrial felt and fabric manufacturer located at Jiangsu province,Xuzhou city. With advantage technology and excellent produce equipment,we provide one-stop service from consultation,process design and optimization , manufacture ,installation , commissioning and personnel training and so on.At the meantime,we can custom design according to customers' requirements. Through our professional analysis, we can reduce customers' costs, enhance their competitiveness, and provide customers with one-stop industrial fabric solutions.Leizhan corporate spirit : "Unity, innovation, pragmatism, and truth-seeking".Since the establishment of Leizhan, we have insisted on taking customer needs as our core, thinking about what customers think, worrying about what customers need, and striving to achieve customer satisfaction. We insist on growing and succeeding together with customers, and have established long-term stable and successful cooperative relations with customers in 35 countries.We are united. In today's globalization, we unite with our customers, develop together, and make customers more successful.
FAQ
1. Q: Can i have a sample order for round yarn dryer screen?
A: Yes, we can provide free sample together with our catalogue for customer to test and check quality.
But the freight charge will on your side. We'll refund the freight charge when you make an order.
2.Q: How to proceed an inquiry for flat yarn dryer screen ?
A: You need to provide
1)Use propuse
2)Size
You can also indicate if you have any special requirement. We'll recommend most suitable type for you and provide a formal quotation list after your inquiry received.
3.If the products can be customized?
A: Welcome OEM and ODM service, custom designs and dimensions are acceptable.

---
