1.8 Degree 2 Phase NEMA 17 Electric Hybrid Stepper Motor for CNC Milling Machine

US$1.00-50.00 10 Pieces (MOQ)

Basic Info.

Model NO.
NEMA 17 series
Number of Stator
Two-Phase
Excitation Mode
HB-Hybrid
Function
Control
Number of Poles
4
Operate Mode
Three-Phase Six-Step
Type
Planetary BLDC
Certification
CE
Brand
GS
Warranty
1 Year
Sample
Available
Step Angle Accuracy
1.8°
Insulation Class
B (F Available)
Shaft Type
Round, Flat, Pulley, Gear...
Transport Package
Plastic Bag and Carton Packing
Specification
NEMA17 42*42mm
Trademark
GS
Origin
Zhejiang, China (Mainland)
HS Code
85013100
Production Capacity
30000PCS Per Month

Product Description

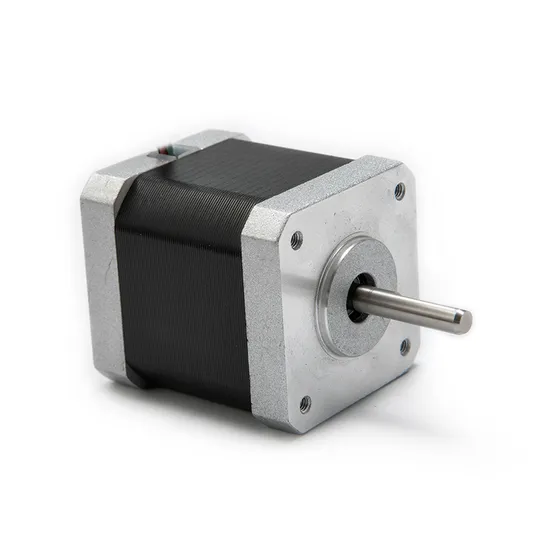

NEMA17 42mm Micro Hybrid Stepper Motor for CNC 3D Printer
Characteristics1. Precise position control.2. Speed control function.3. Forward/reverse rotation, emergency stop and lock function.4. High-precision position control at low speed.5. Long service life.
Technical Specification
Item Specifications
Steps/cycle 200
Step Angle Accuracy 1.8°±5% (full step, no load)
Resistance Accuracy ±10%
Inductance Accuracy ±20%
Temperature Rise 80ºC Max (rated current, 2-phase on)
Insulation Resistance 100MΩ Min., 500VDC
Insulation Class Class B (Class F is available)
Protection Grade IP40

Stepper Motor Parameters
Model Poles Current Resistance Inductance Holding Torque Detent Torque Weight Length (L)
A Ω mH Nm mNm KG mm
42BYG34-4040 2 0.4 30 51 0.25 12 0.22 34
42BYG34-4065 2 0.65 8.8 15.5 0.23
42BYG34-4100 2 1 4.2 7.5 0.24
42BYG34-4150 2 1.5 1.8 3 0.23
42BYG34-6040 4 0.4 31 27 0.18
42BYG34-6085 4 0.85 5.1 4.5 0.16
42BYG34-6120 4 1.2 2.9 2.5 0.17
42BYG40-4050 2 0.5 25 50 0.4 18 0.25 40
42BYG40-4085 2 0.85 6.6 11 0.36
42BYG40-4100 2 1 5 11.2 0.4
42BYG40-4150 2 1.5 0.75 2 0.4
42BYG40-6040 4 0.4 35 35 0.3
42BYG40-6085 4 0.85 6 6.8 0.27
42BYG40-6130 4 1.3 2.5 2.8 0.27
42BYG48-4040 2 0.4 30 45 0.46 24 0.35 48
42BYG48-4085 2 0.85 6.6 11 0.45
42BYG48-4100 2 1 7.3 12 0.5
42BYG48-4150 2 1.5 2 3.85 0.5
42BYG48-6040 4 0.4 29 33 0.38
42BYG48-6080 4 0.8 7.6 8.6 0.36
42BYG48-6120 4 1.2 3.3 3.2 0.35
42BYG48-6200 4 2 1.3 1.4 0.38
42BYG60-4100 2 1 5.4 14.1 0.6 28 0.58 60
42BYG60-4150 2 1.5 2.8 7.2 0.6
42BYG60-4200 2 2 1.3 3.3 0.6
42BYG63-4100 2 1 5.6 14.6 0.65 30 0.6 63
42BYG63-4150 2 1.5 3 7.7 0.65
42BYG63-4200 2 2 1.8 3.8 0.65
Note:If this model is not what you want, please freely tell us about your requirement. We will provide you with a suitable motor solution and price soon.
Drawing
View Of Item
