Basic Info.
Embroidery Area
400*450mm
Key Selling Points
Automatic
Machinery Test Report
Provided
Overall Dimensions
5200*1490*1720mm
Type
T-Shirt Flat Embroidery Machine
Product Name
12 Heads Cap Embroidery Machine
Application
Cap/Tshirt/Finished Garments/Logos/3D Embroidery
Transport Package
Woodencase Packing
Production Capacity
50 Set/Sets Per Month
Product Description
Product Description Specification
| Heads | 12 |
| Needles per head | 9/12/15 |
| Maximum speed in stitches per minute (SPM) | Max 1000SPM |
| Maximum embroidery area | 400*450mm (15.7"*17.7") |
| Memory capacity | 20 million stitches or 200 designs |
| Control panel | 12" LCD display with 16 language |
| Safety features | Emergency stop button, heat dissipation fan |
| Use | Flatbed, cap, finished garments |
| Number of hoops | 101 |
| Attachments | 20pcs cap rings, 10pcs cap driver, 1pcs hoop station |
| Weight | 1500kg |
| Design transfer options | Ethernet connection, USB |
| Additional features | 270-degree wide angle cap system |
| Packing Size (mm) | 5200*1490*1720mm |
| Voltage | 100-250V |
| Power | 1500W |

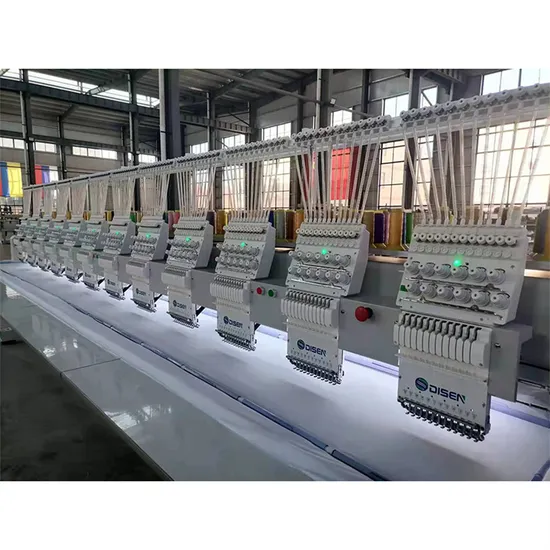

12 Heads Embroidery Machine, 9/12/15 Needles 12 heads embroidery machine has 9, 12 or 15 needles and the embroidery are is up to 400*450mm. Application: suitable for caps, tshirts, garments, pants, pocket, bag, shoes, tablecloth, various thickness of fabric and leather etc. Features 1.12" LCD touch screen with easy operations and 16 languages: Chinese, English, French, Spanish, Portuguese, Turkish, German, Dutch, Thai, Arabic, Romania, Italian, Vietnamese, Hebreo, Polish, etc. 2.Large memory capacity: 20 million stitches or 200 designs. 3.Machine reads multiple design formats such as DST, DSB and more. 4.Thread break detection system. 5.Automatic needle threading and thread trimming. 6.270° wide angle cap frame. 7.Automatic color change with maximum change orders of 200 times. 8.Emergency stop button for timely troubleshooting. 9.USB input or direct transmission from PC via LAN port. 10.Quick changes of embroidery hoops of multiple sizes. 11.Removeable embroidery table. 12.Optional swivel casters for easy motion. Product typeFlat Embroidery Machine CertificationISO9001/CE Head number1-100 Head Optional Needle number3/4/6/9/12/15 Optional Head interval0-1000MM, Be customized Embroidery areaCustomized Operation:Dahao computer optional Main motor:Dahao servo motor Max speed:850-1200 RPM Attached device:Sequin, Easy Cording, Boring, Thick thread, Laser Cutting optional Note: For custom-made machines, the quotation needs to be quoted according to customer needs. Please contact the salesperson for details. Enterprise Show
>>
