Basic Info.
Model NO.
RX-01(Diesel engine)
Application
Rice, Corn, Wheat, Soybean, Straw
Harvest method
Vibration fall
Portable Harvester Type
Side Hanging Type
Application Field
Agriculture
Name
Multi Crop Power Thresher
Capacity(Kg/H)
2000-4000kg/H
Spindle Speed (R/Min)
550-620
Trademark
Run Xiang Machinery
Production Capacity
2000-4000kg/H

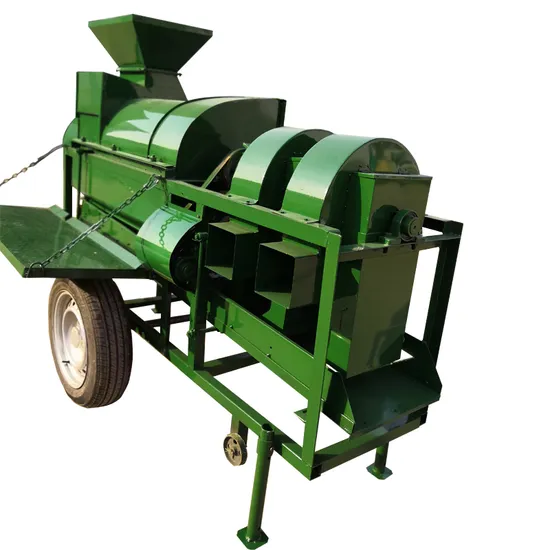

Product Description
A corn thresher is a machine used to separate corn kernels from corn husks and corn cobs. The machine is designed to reduce the labor required to peel corn. It is also used to harvest corn, millet and other cereal crops. The thresher operates by rotating a drum with metal teeth or blades. Corn cobs are fed into the machine, and the blade-like teeth of the thresher separate the corn kernels from the cobs. The separated corn kernels are then collected into a storage container.
Function of wheat thresher machine
A wheat thresher is a machine specifically used for threshing wheat. The machine is mainly composed of a cylinder, a pulp stripper, a conveyor belt, a vibrating screen and other components, which can complete the threshing and cleaning of wheat and improve the efficiency and quality of wheat harvesting.
Working principle of thresher wheat
The working principle of the wheat thresher is mainly to separate wheat from debris through the rotation of the cylinder and the action of the pulp stripper. The specific process is: put the harvested wheat into the feed port, and after the action of the conveyor belt and the cylinder, the wheat and debris will encounter the pulp stripper. The pulp thresher produces clean bran and grains through rotation and friction, and finally separates them through a vibrating screen.
Advantages of rice thresher
1. Improve harvesting efficiency. The rice thresher can thresh and clean rice at one time, and can quickly complete the harvesting work.
2. Ensure grain quality. During the rice thresher process, especially after selecting the appropriate sieve material, mechanical damage and grinding can be effectively avoided, which can not only ensure the quality of rice, but also prevent pollution.
3. Reduce labor intensity. Using a rice thresher can reduce labor intensity to a minimum, which can not only reduce the workload, but also create a more humane working environment for operators.
Specifications of the machine
| Model | RX-01 (Without engine) | RX-01(Electric engine) | RX-01(Diesel engine) | RX-01(With PTO) |
| Size(mm): | 2460*1400*1650 | 2460*810*1650 | 3400*2100*1980 | 2800*740*1400 |
| Weight(KG): | 460 | 560 | 700 | 640 |
| Power: | Customized | 7.5kw-11kw | more 12 HP | more 12 HP |
| Spindle speed (r/min): | 550-620 | 550-620 | 550-620 | 550-620 |
| Threshing rotor length(mm): | 1000 | 1000 | 1000 | 1000 |
| Rotor diameter(mm): | 480 | 480 | 480 | 480 |
| Capacity:(kg/h) | Corn:2000-4000kg/h Sorghum/Millet/Rice:1000-2000kg/h Bean:800-1000kg/h | Corn:2000-4000kg/h Sorghum/Millet/Rice:1000-2000kg/h Bean:80-=1000kg/h | Corn:2000-4000kg/h Sorghum/Millet/Rice:1000-2000kg/h Bean:800-1000kg/h | Corn:2000-4000kg/h Sorghum/Millet/Rice:1000-2000kg/h Bean:800-1000kg/h |
Choose a suitable thresher
1. Suitable crop types: You need to choose the corresponding thresher according to the type of grain you grow.
2. Processing capacity: You need to choose a thresher with corresponding processing capacity according to your harvesting scale and needs.
3. Performance stability: The stability, accessories and post-maintenance service system of the thresher should also be taken into consideration.
4. Reasonable price: In addition to quality and performance, the choice of thresher should also be based on your actual needs and economic conditions, so as to better choose a thresher that suits you.
What payment methods do we support?
Our factory supports various payment methods, including bank transfers, credit cards, and online payment platforms such as PayPal and Alipay.
How do we ensure the quality of machine products?
We are always committed to producing high-quality mechanical products, and adhere to quality management and control in the process of independent research and development, manufacturing, testing and after-sales service. Strictly implement ISO9001 standards, conduct all-round quality control of raw materials, processes, workers, equipment, environment, etc., continuously optimize the production process, and ensure the quality reliability of products in the entire system.
What's the difference between our company's machines and others?
Our company's Corn Thresher Machine is designed to be efficient and cost-effective while also being durable and long-lasting. Our machines are made from high-quality materials, ensuring that they can withstand the harsh farming conditions in different parts of the world. Additionally, our Corn Thresher Machines are easy to use and maintain, making them a valuable asset to farmers.
>>
