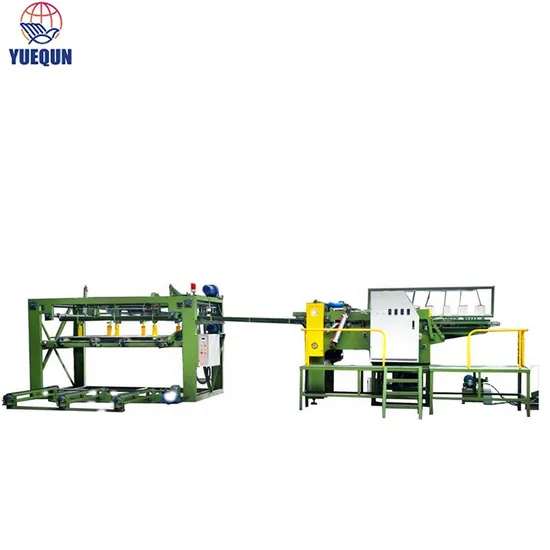

1300mm Veneer Composer Machine

Product Description

Wholesale Different Sizes Plywood Forming Jointing Core Veneer Composer Machine Pric

Model	ZPSF3-3
Working veneer width	968-1270 mm (3-4ft)
Cutting veneer length	1220-2560 mm (4ft, 5ft, 6ft, 7ft, 8ft)
Working veneer thickness	1.2-6 mm
Length of knife	1400 mm
Feeding speed	0-60m/min
Electric power requirement	380V-50Hz 3phase
Power for every part	Coveyor power: 3kw(servo motor)
	Front cutting power: 3kw(servo motor)
	Jointing power: 3kw(servo motor)
	Rear cutter power: 3kw
	Lifting power: 3kw
	Conveyor to stacker power: 1.5kw*3
	Stacking power: 1.5kw
	Cooling power: 1.5HP
	Heating power:5.7kw
Gree inverter	10kw inverter
Area occupied (W x L)	2300X13000mm
Main machine	3800X2300X2200mm
Push veneer system	4000X1900X2300mm
Output	200-350pcs/hour (4x8ft)
Weight	6.5Tons
Shipping measurement	25cbm

Main Features
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization,no pollution.
5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .
Pre-sale service 1) Provide the free consultation of equipment 2) Provide the standard device and the flow chart
3) According to the clients' special requirement ,offering the resonable plan and free design to help to select the equipment .
4)Welcome to visit our factory
Service during the sales 1) Inspect the machine before leaving the factory 2) Oversea install and debug the equipment
3) Train the first-line operator
After sales service 1) 24 hours online service 2) Provide the VIDEO with install and debug the equipment
3) Provide technical exchanging
FAQ
Q1:Can you customize products for clients?
A1: Yes We can customize and produce woodworking machines according to the customer's requirements or drawings.

Q2:What about your products quality?
A2:We can provide you samples for quality inspection. If you order, we guarantee the quality is same with sample. In case of quality problem, we can sign agreements and our company will perform the duties.

Q3:How can we trust your factory?
A3:We recommend that you come to our factory to see the goods,to verify the real situation of the products, and know more about our factory.

Q4:Why does the price often change?
A4:The price depends on the latest prices of the raw materials.

Q5:What about the contract signing?
A5: If you're satisfied with the products and our service, you can sign the contract with us, pay the deposit Then we'll produce the machines as soon as possible. If you are far away, we can sign the contract by fax. We will ensure the quality of the products and the accessories are complete.

Q6: How about delivery?
A: when the product is ready, it can be delivered to you after your full payment. We'll provide technical guidance.

---
