Iorn Plate Cutter Laser Metal Cutting Machine

Product Description

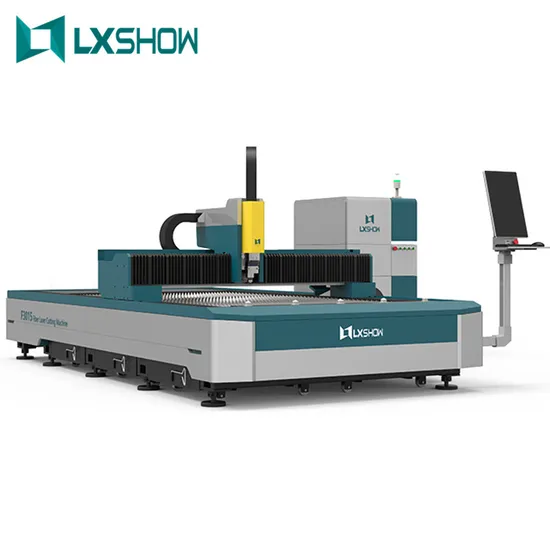

High Quality Fiber Laser Cutting Machine for Metal CutLX3015FT is fast speed mild steel cnc fiber laser cutting machine with 3000*1500mm working area, which consist of machine tool,motion parts, electrical equipment control parts, and other assist parts. Via control system to operation three axis motion parts,so it can drive to fiber laser cutting head achieve a stable, accurate, and high speed moving; X and Y axis of aluminium stainless steel sheet cutting machine adopt by imported with original packaging high quality and precision HIWIN linear guide rail, working table adopt by square pipe to welding the overall machine, stress relief annealing treat, the max load-bearing of mesa could get 500 KG, it also has universal ball bearing, machine external set up peripheral clamping device, use full enclosed dust proof device, photoelectric sensor, and other precise positioning parts to ensure accuracy of the transmission.
LX3015F Fiber Laser Cutting Machine Configurations advantage 1. Moved crossbeam with imported high precision racks and linear guide rail, transmission stable, working with high precision. 2.Machine tool, crossbeam and worktable adopt integral welding structure, machine tool, crossbeam and worktable adopt integral welding structure, in accordance with the standard large machine, to stress annealing after precision finishing and then for vibration aging treatment, it can completely eliminate the welding stress and processing stress, keep high-strength, high precision, and also keep the 20 years of normal use don't deformation.
3. X, Y and Z axis use imported Japan servo motor, high precision, high speed, large torque and large inertia, performance is stable and durable, ensure the high speed operation of the whole machine.
4. Based on Windows operating system, use professional Cypcut numerical control system for fiber laser cutting machine, integrated with laser cutting control special function module which is powerful with a good man-machine interface and easy to operate.
Real shot
MAIN PARTS
The RAYTOOLS AG comes with the external motor and the built-in drive unit through the linear driver and the focusing lens can automatically change the position in the range of 25mm. The user can set the focus continuously through the program to complete the rapid perpiercing of thick sheets or other different thickness and material sheets.
Rotary Length:6m standard,8m and other size can be customized.Rotary Diameter:160/220mm is standard. Other size can be customized.Chuck:Both pneumatic control
LASER GENERATOR
JPT/IPG/NLIGHT/RAYCUS
Customizable
CONTROLLER
BOCHU FSCUT 2000C
SAMPLE
Parameters of laser cutting machine

Model	LX3015FT(LX3020FT LX4020FT LX6020FT)
Working area	3000*1500mm
Miximum length of pipe(Options)	3000mm(or)6000mm
Limits of pipe(Customized)	Round tube:Φ20mm~Φ120mm; Square tube :Φ20mm~80mm; Circular tube: Φ20mm~Φ120mm;Square tube: Φ20mm~80mm
Laser type	Fiber laser generator
Laser power(optional)	500~4000W
Transmission system	Double serve motor &gantry&rack&pinion
Maximum speed	±0.03mm/1000mm
Pipe cutting system(optional)	yes
Maximum speed	60m/min
Maximum accelerated speed	1.2G
Position accuracy	±0.03mm/1000mm
Reposition accuracy	±0.02mm/1000mm
Graphic format supported	CAD,DXF(etc)
Power supply	380V/50Hz/60Hz

* About Jinan Lingxiu Laser Equipment Co., Ltd.is established in July 2004, owns more than 500 square meters of researching and office
space, more than 32000 square meters factory.All machines , passed the European Union CE authentication, American certificate and
are certified to ISO 9001. Products are sold to USA,Canada, Australia, Europe, South east Asia,Africa etc,more than 150 countries
and areas,and supply OEM service for more than 30 manufactures. After-sales service team
FAQ
Q: Do you have CE document and other documents for customs clearance?
A: Yes, we have Original. At first we will show you and And after shipment we will give you CE/Packing
list/Commercial Invoice/Sales contract for customs clearance.
Q: Payment terms?
A:****** trade assurance/TT/West Union/Payple/LC/Cash and so on.
Q: I don't know how to use after i receive Or i have problem during use, how to do?
A: We can provide team viewer/Whatsapp/Email/Phone/Skype with cam till all of your
problems finished.We can also provide Door service if you need.
Q: I don't know which one is suitable for me ?
A :just tell us below information
1) Max work size:choose most suitable model.
2) Materials and Cutting thickness:Power of laser generator.
3) Business industries:We sell a lot and give advice on this business line.
Q: If we need Lingxiu technician to train us after order,how to charge?
A:1) If you come to our factory to get training,it is free for learning.And the seller also accompany
you in factory 1-3 working days.(Every one learning ability is different,also according to details)
2) If you need our technician go to your local factory to teach you ,you need to bear the technician's
business travelling ticket / room and board/ 100 USD per day.


Q:Why the machine price not include fiber source and tube parts ? A:Different power different tube diameter price different , that's why we list the price not include fiber source and tube parts .

---
