Dahua Villa Outdoor Station Vandalproof Video Door Phone Vto3221e-P 2MP Video Intercom

Product Description

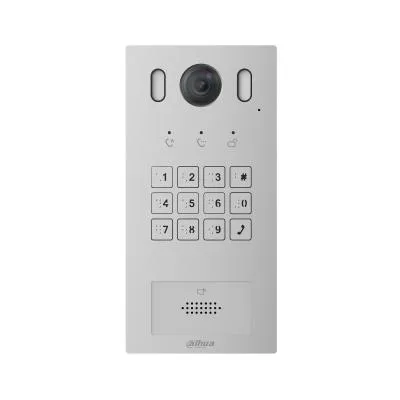

Product Description VTO3221E-P IP Villa Door Station
> Keyboard villa door station
> Supplemental lighting with white light
> 2MP CMOS camera
> Mechanical button with Braille
> Aluminium alloy plate, IK08, IP55 (Apply silica gel to gaps between the device and the wall. Liquid sodium silicate is recommended. For details, see the quick start guide.)
> Door release via password and Mifare card
Product Parameters

Technical Specification

Model

VTO3221E-P

System

Main Processor

Embedded Micro Processor

Operation System

Embedded LINUX OS

Video

Video Compression

H.264

Image Sensor

1/2.9" 2MP CMOS

Auto Gain Control

White Light

Lens

2mm

Angle of View

H:140° V:82°

Day/Night

Color Image

Audio

Audio Compression

G.711

Audio Input

Omnidirectional Mic

Audio Output

Built-in Speaker

Bidirectional Talk

Support Dual-way Bidirectional talk

Operation Mode

Keypad

Mechanical Button with Braille

Reader

Mifare Card (13.56MHz)

Interface

Alarm In/Out

1/1

Door Control

1 Relay Out 1 RS485 1 Feedback 1 Exit Button

Wiegand In

1

Storage

Micro SD Card, Max 64 GB (reserved for software)

Network

Ethernet

10M/100Mbps

Network Protocol

TCP/IP

General

Ingress Protection

IK08, IP55 (Apply silica gel to gaps between the device and the wall. Liquid sodium silicate is recommended. For details, see the quick start guide.)

Tamper Switch

1

Installation

Surface & Flush

Material

Aluminum

Power

12 VDC, 2 A, PoE (802.3af)

Power Consumption

Standby ≤2W, Work ≤7W

Working Temperature

-40 °C to +60 °C (-40 °F to +140 °F)

Relative Humidity

20%-95% (RH)

Dimensions

200 mm × 98 mm × 32mm (7.87" × 3.86" × 1.26")

Weight

1.5 kg (3.31 lb)

Packaging & Shipping

Shipping	DHL, Fedex, UPS, Sea shipping
Warranty	2 years
OEM services	Yes!!! you can OEM with your own logo
Technical support	Yes!!! we have technical team

Company Profile About company
Hangzhou Paize technology Co.,Ltd is founded in 2015 in Hangzhou.
We are a professional wholesales of CCTV Surveillance products, we not only provide products, services, technical support, but also provide solutions.
Our main products come from Top3 manufacturers in China's security industry, Hikvision and Dahua and IMOU. including these products: Network camera, PTZ camera, Network video recorders, Explosion-Proff and Auti-Corrosion, Turbo HD camera, Digital video recorders, Access control, Video intercom, Alarm, Display and Control, Transmission, Thermal camera, Intelligent traffic, Storage, Accessories, etc...
Our goal is to: Find a long-term business partner, and establish a long-term and stable win-win cooperation relationship. Help you win the market! Welcome to contact us! contact Yulia for better services. FAQ 1)Why choose us?
Comptetive Price:Our company has built up friendly relations with Dahua,Hikvision, IMOU since 2015.and we work with factory directly.
Friendly and fast service:We have professional tech-support team to deal with problems before and after sales. Don't be afraid if you meet probelms.We are here!

2)When will you ship my order?
Products are popular,so inventory is always changing. Please contact us before you pay and we will confirm the date with you.

3)Can I installate the security cameras by myself?
Of course!There is always a user manual in the packaging box.You can contact us directly if you meet any problems.We are here!
4)How about warranty?
2-year warranty period(since the date you receive the order). some products are 3 years and some are 5 years, welcome to confirm with us.
5)How about the shipping cost?
Shipping cost is depend on weight, we have very cost-effective agent for you.
6)Your products sell to whom?
Retail and wholesale customers are both welcomed.

If interested in this camera,pls contact us today and know the most latest information!
