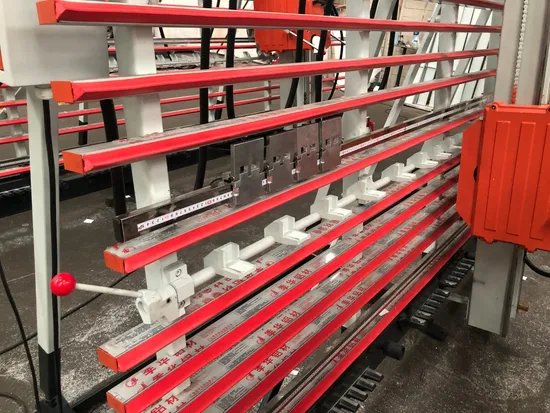

Woodworking Wood Panel Cutting Vertical Panel Saw Cutting Machine

Product Description

Product Application The machine is developed by adopting Italian classic structure technology and idea of profile processing in combination with the professional outcome of our company. The machine is mainly used for the grooving and cutting of solid wood, MDF, plywood, pure aluminum plate, PVC and fire proofing plate.
1. Adopting imported hard alloy saw blades ensures high stability in high-speed running, efficiency and long life.
2. Grooving depth is controlled by special eccentric bearing structure, and adjustment can be done at random between 0 to 50mm; the adjustment is easy and the precision is high.
3. The cutting head can realize the horizontal and vertical cutting or grooving. It's of easy adjusting, accurate,positioning,
flexible operating and stability.

Model	QFKC1641
Length of grooving/cutting	4100mm
Height of grooving/cutting	1600mm
Grooving/cutting thickness	0-50mm
Specification of saw	Φ250XΦ30X3.2mm
Working voltage	380V AC 50HZ
Motor power	3kw
Spindle speed	5400RPM
Overall Dimension (L*W*H)	5400x1500x2600mm
Weight of machine	1500Kg

---
