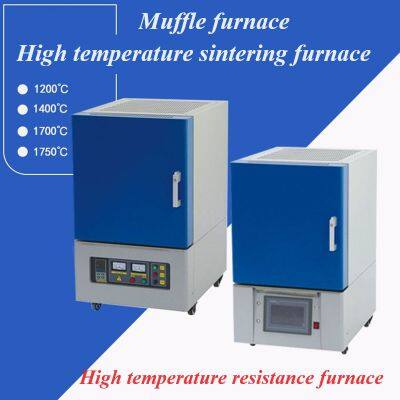

High temperature sintering furnace/high temperature resistance furnace/muffle furnace series products
Product Usage: Widely used in laboratory research and small-scale production in factories, as well as in other fields related to ceramic metallurgy, electronics, glass, chemical industry, machinery, refractory materials, new material development, special materials, building materials, etc.
Specifications (expressed by furnace size): Standard high-temperature resistance furnaces come in various specifications, including 100 * 100 * 100mm/200 * 150 * 150mm/300 * 200 * 200mm/400 * 300 * 300mm. Non standard specifications can be customized according to customer needs.
Temperature: 1200 ℃/1400 ℃/1700 ℃/1800 ℃.
Thermocouple and measurement range: K-type 0-1200 ℃, S-type 0-1600 ℃, B-type 0-1820 ℃.
Temperature control accuracy: ± 1 ℃.
Heating rate: 0-20 ℃/min can be set arbitrarily, it is recommended to be ≤ 10 ℃/min.
Shell design: The electric furnace shell adopts a double-layer forced air cooling structure, which makes the external temperature of the furnace shell close to room temperature during high temperatures, avoiding accidental injuries.
Furnace design: The furnace adopts a stepped assembly structure that integrates mechanical laws, effectively ensuring uniform force distribution during the heating process, preventing heat energy loss, and extending the service life of the furnace.
Furnace material: Made of new lightweight alumina ceramic fibers, it has excellent insulation effect, is lightweight and resistant to high temperature, rapid cooling and heating, is not easy to crack, crystallize, and slag, so there is no need to worry about contaminating the fired products. The energy-saving effect is 60% -80% of that of old-fashioned electric furnaces.
Temperature control method: using an intelligent temperature controller: with 30-50 segments of programmable PID self-tuning, automatic heating and cooling, no need to be on duty. RS-485 communication interface and control software can also be optionally equipped to achieve real-time control on the computer (connecting to a regular computer can start, stop, alarm stop heating, set heating curve, store heating curve, and record historical curve functions).
Accessories: 1 crucible clamp and 1 pair of specialized high-temperature gloves. One user manual.
Please ask the buyer to send specific specifications and temperature requirements for accurate quotation.
Model: SX2-1-12TP
Maximum temperature: 1200 ° C
Commonly used temperature: ≤ 1050 ℃
Heating zone furnace boring size: 100 * 100 * 100mm
Gross weight: 61kg
Size: 550 * 525 * 885mm
Heating element: resistance wire
Heating method: three sided heating
Thermocouple: K-type
Temperature control accuracy: ± 1 ℃
Power: 1kw
Working voltage: 220V
