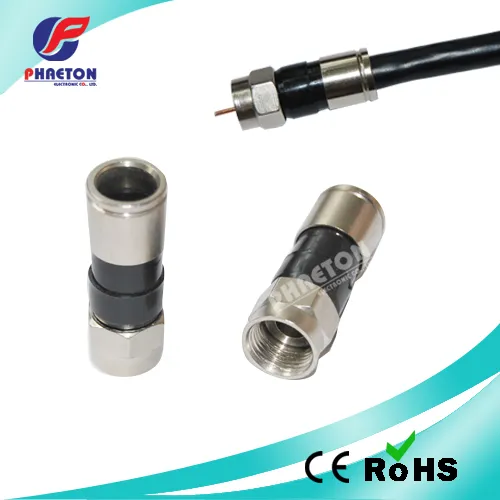

RG6 Compression RF Connector for Coaxial Cable

Product Description

High performance Black Nickel connector f compressed for Cable RG6 Universal so it works with all RG-6 Cable (60% thru Quad) Compression Connector with Dual O-Rings All Brass Construction Bag of 100 Meets SCTE Specifications Product Specifications
Bandwidth:0MHz to 3GHz
Impedance:75Ohms
Return Loss:Minimum -30 dB to 3GHz
Insertion Loss: LESS THAN 10db to 3GHz
Shielding Effectiveness:Ehanced by 25dB
Operating Temperature:-40° F to +140°F(-40°C to +60°C)
Cable Retention:45lbs minimum
Meets or exceeds all SCTE Specifications

Characteristic impedance	75Ω	Temperature range	-65~+165°C
Frequency range	DC~1GHz	Working Voltage	≤170V
Center conductor retention force	≥0.2 N	Vibration	100m/s2 (10~500Hz)
Conductor resistance	Center Conductor	≤ 10 mΩ
	Outer Conductor	≤ 5 mΩ
Durability	Mating cycles	≥500
	Withstanding voltage	≤500V rms
Voltage Standing Wave Ratio	Straight	≤1.20
	Right angle	≤1.30
	Parts Name	Material	Plating
Material And Plating	Body	Brass	Nickel plated
	Pin contact	Brass	Gold or silver plated
	Resilient contact	Tin bronze	Gold or silver plated
	Insulators	PTFE	-
	Gaskets	Silicon rubber	-
	Crimp ferrules	Copper alloy	Nickel or gold plated
Applicable standard	IEC 60169-24

Drawing :
Pictures
Application :
Package :
Workshop :
FAQ:

Q1:Are you a trading company or manufacturer?
We are professional manufacturer for audio&video cable . also we supply of different electrical and electronic items
Q2: why will you choice us :
more than 15 years of professional teams will give you good quality products ,good service ,and reasonable price .
Q3:Can we have our logo or company name to be printed on your products or the package?
We offer OEM , ODM . our designer can make special design for you .
Q4: Is the MOQ fixed?
The MOQ is flexible and we accept small order as trial order.
Q5:Can I have a visit to you before the order?
Sure,welcome to visit our company ..
our company is only one hour by train from shanghai

---
