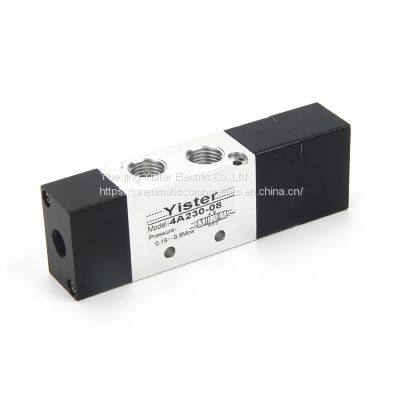

1/8" 5 way pneumatic air control valve for air compressor

Product Details

Product Description

Product Description
1/8" 5 way pneumatic air control valve for air compressor
Order code
Symbol
Technical parameter

Model	4A210-06	4A220-06	4A230C-06	4A230E-06	4A230P-06		4A210-08	4A220-08	4A230C-08	4A230E-08	4A230P-08
Fluid	Air flow control valve
Acting	Exterior control
Valve type	5/2 way		5/3 way				5/2 way		5/3 way
Orifice size	14mm2		12mm2				16mm2		12mm2
Lubrication	No required
Port size	In=out=Exhaust=G1/8”					In=out=Exhaust=G1/4”
Protective class	IP65
Pressure range	0.15-0.8MPa
Proof pressure	1.2MPa
Material of body	Aluminum Alloy
Temperature	-5℃~60℃
Response speed	<0.05s

Dimension
Feature
1.Structure in sliding column mode: good tightness and sensitive reaction.
2.Double air control valves have memory function.
3.Internal hole adopts special processing technology which has little attrition friction, low start pressure and long service life.
4.No need to add oil for lubrication.
5.Multi-mounting helps to install and apply.
6.Integrate with the manifold to save installation space.

---
