5kVA to 25kVA Small Portable Silent Electric Generator Set 8kw 10kVA 9kw 11kVA 1 One 3 Three Phase Diesel Generator

Product Description

Product Description

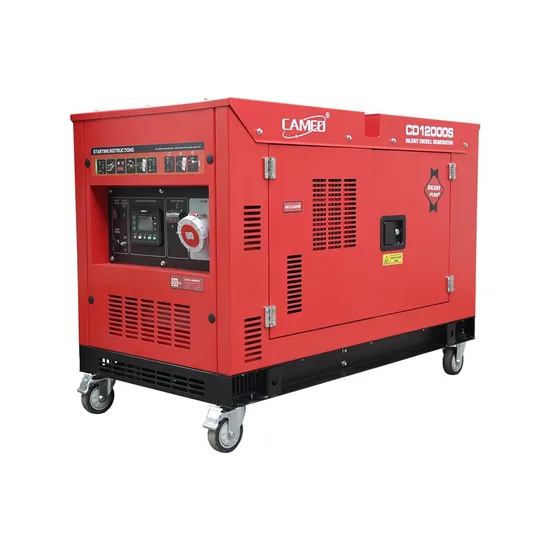

About this product(CD12000S)
12000 peak watts, 10000 running watts; remote start, comes with key fob, electric start;
26L fuel tank with fuel gauge, up to 8 hours of run time. Rated speed (RPM): 3600. THD: ≤ 5%
Equipped with a multi-function controller with touch screen, you can easily understand the various operating states of the generator.One standard industrial use 400v AC socket, and the outlets are equipped with dust and waterproof rubber covers for added safety. Powered by a heavy-duty V-twin cylinder 870cc four-stroke diesel engine, with automatic low oil shutoff function and 3-in-1 digital meter, plug and play.
Accessories include key fob, oil funnel, tool kit, standard plug and user manual. (Minimal assembly required by the user)
Optional one-button start and remote start, pre-start heating (for winter), ATS system.
All CAMEO portable generators are tested for functionality at the factory and may contain minimal residual oil and/or fuel odor; meet EU V, CE standards; provide a 1-year limited service, labor and parts warranty.
Product Parameters

Silent Diesel Generator CD TYPE
Power series		8kW		10kW		11kW		12kW		15kW
Model		CD10000S		CD12000S		CD14000S		CD15000S		CD18000S
Generator	Frequency	50	60	50	60	50	60	50	60	50	60
	Rated power (kW)	8.0/8.5		10.0/11.0		11.0/12.0		12.0/13.0		15.0
	Maximum power(kW)	8.5/9.0		11.0/12.0		12.0/13.0		13.0/14.0		16.0
	Voltage (V)	230/400V
	Noise Level(@1/4 load,7m ) (dBA)	75		75		75		75		75
	THD	≤5%		≤5%		≤5%		≤5%		≤5%
	Reated speed(r/min)	3000/3600		3000/3600		3000/3600		3000/3600		3000/3600
	Phase	Single phase/three phase
	Power factor (cosφ)	1.0/0.8
	Excitation method	Brushless self-excited constant voltage (AVR)
	Insulation class	F
Engine	Engine model	CP1103FE		2V88B		292FE		294FE		2V98FE
	Power Type	Single cylinder, four stroke, air cooling
	Combustion method	Direct injection
	Cylinder bore x stroke (mm)	103X88		2-88*72		2-92*75		2-94*77		2-98*88
	Displacement (cc)	733		870		997		1069		1326
	Compression ratio	20:1		20:1		20:1		20:1		20:1
	Rated speed(r/min)	3000		3000		3000		3000		3000
	Rated power(kW)	11.2	12.5	13	14	14	15	16	17	20	20
	Start type	Electric start		Electric start		Electric start		Electric start		Electric start
GENERATOE SET	Fuel tank capacity (L)	26L		26L		26L		26L		26L
	Full load durability(H)	500		500		500		500		500
	Fuel consumption (L/h)	≤2.8	≤3.1	≤3.5	≤4.2	≤3.8	≤4.5	≤4.0	≤4.7	≤5.1	≤5.8
	Runtime(H)	9.3	8.4	7.9	6.5	6.8	5.6	6.5	5.5	5.1	4.5
	Product Dimensions(L×W×H)mm	1050*650*765		1250*650*765		1250*650*765		1250*650*765		1250*650*770
	Packing Size(L×W×H)mm	1050*690*890		1330*730*925		1330*730*925		1330*730*925		1250*660*780
	Loading Qty(20GP/40HQ)	32/102		23/52		23/52		23/52		22/44
	N.w/G.w(kg)	211/228		276/300		298/320		305/330		325/355
