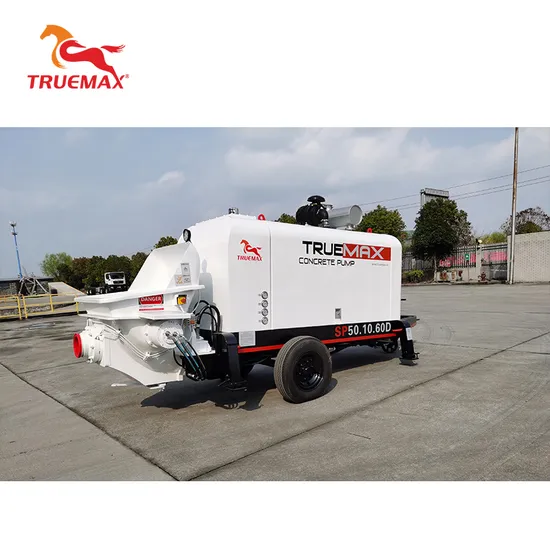

Hot Selling Concrete Machinery Truemax Sp50.10.60d Cement Stationary Putzmeister Diesel Trailer Concrete Pumps for Sale

Product Description

Production Information:
Concrete Pump
1.Hydraulic system
Double open hydraulic circuit and great displacement with two pumps, pumping hydraulic circuit and distributing hydraulic circuit work separately, makes it more appropriately. The reliability of whole system is also much higher as well as the components' life is prolonged greatly, which is convenient for seeking and settling the problem.
It has safe relief protection that pumping hydraulic circuit, at the time, when the system pressure is over, the oil pump cut device, makes the main pump protect reliably.
With logic electrical high-low pressure switch or hand operated valve, switching from high pressure to low pressure becomes easily and quickly.
The big bore reversal cylinder-with the big bore piston cylinder which have special buffer equipment, more effective and powerful.
2.Mechanical(mixing)system
The design of hopper and S valve and so on adopt I-DEAS software, through this calculation, the hopper and S valve have good rigidity and avoid the phenomenon of hopper distortion and S valve broken.
The agitator has unique structure, which separates the hydraulic motor and agitator bearing block, it will not influence the hydraulic motor even if abrasion and slurry leak. Concrete could be mixed fully because of mixing auto-reverse rotate and wear-resistant mixing blade; it can avoid pipe jam effectively.
By using new material, new process, new structure and continuous technique development, the life of the wearing parts such as spectacle plate and cutting ring is improved more than 30%, lie in the advanced level of this field.
3.The radiator equipment of cooling makes the working oil temperature of hydraulic system below 60ºC and makes the machine in normal status. The water-cooled radiator for the hydraulic system can be chosen according to customers' requirements.
4.Lubrication system
Full closed automatic supplementary lubricating oil technology was adopting the power of hydrodynamic lubrication pump, The continuous Input of the small displacement of the lubricating oil to the lubricating part ensures the lubrication reliability and prolongs the service life. Prevent the damage due to lubrication.
5.Adopting the high power engine, the big output power and torque not only guarantee the powerful working and complete burning, also reduce the waste emission and fuel consumption.
6.The improved hopper-adopting the side-wall filming technology, Optimized the hopper cavity, suitable for all kinds of concrete.
Production Show:
Parameters:

Items		Units	SP50.10.60D
Performance	Theo. Output (Low/High)	m3/h	49/26
	Concrete Pressure Low/High)	MPa	10/5
	Main Oil Pump	/	Han Chuan K5V80S
	Distributing Valve Style	/	S Valve
	Concrete Cylinder Size(Diameter×Stroke)	mm	Φ180×1200
	Pumping cylinder Size	mm	135
	Hopper Size(Capacity× Feeding height )	L×mm	500L×1335
Power System	Engine		Cummins
	Rated Power	kW	60
	Rated Speed	r/min	2300
Hydraulic System	Hydraulic Circuit Type	/	Open circuit
	Hydraulic Oil Cooling Type	/	Air cooling
Overall Dimension	Overall dimension(Length×Width×Height)	mm	5400*1840*2560
Overall Weight		kg	4100

Our Service:
Faster speed of response of service Modern transportation network of railway and aviation,make sure that all spare parts got delivered in time.

Apart from supplying only the best quality products, we also have available our technical and management solutions.
Our service teams always ready to provide expertise to you. Truemax is ready to provide you with a full range of services.

Best service effect to win your satisfaction and trust We continue to work for guests providing customized system solutions and provide best support and services.Because of the formidable technical team, we have provided high quality tour service to all guests.
Company Profile:
Founded in 2003, Zhejang TRUEMAX Engineering Co., Ltd. is a construction machinery manufacturer and high-tech enterprise specializing in concrete machinery industry, integrating research, development, design, manufacture and marketing of concrete machinery products.The company has advanced technology and equipment, high-quality and efficient management team and perfect management system.The company has passed ISO9001:2015 quality management system certification, and we are constantly working on the research and application of new technologies for concrete machinery.The company actively responds to the national "Made in China 2025" plan and the call for energy conservation and environmental protection. With the helo of the national "Belt and Road" strategy, the company continues to introduce professional talents and advanced technologies. Through unremitting efforts and rapid and sustainable.development, environmental protection products have been covered: Pumping machinery, placing machinery, mixing machinery three series, truck mounted line pump, stationary pump, truck mounted boom pump, placing boom, concrete batching plant, concrete truck mixer and other six types of construction machinerv. With reliable product quality and first-class after-sales service, we provide customers with a package of concrete solutions for concrete production, transportation, pumping and placing. They have won high praises in maior projects around the world, and have won the trust and support of customers in more than 120 countries and regions.
Competitive Advantage:
FAQ:
Q: Are you a factory or trading company?
A: We are the company which is the joint of trade and industry. We have our own factory which has been manufacturing concrete machineries along with spare parts for 14 years offline.
Q: How about the quality control of your productions?
A: All our productions are matured with technology, and have passed CE, CCC, ISO9001, ISO14001, OHSAS18001, and ect.
And we have strict inspection before the goods shipped.
Q: What do you think is the most competitive advantages when comparing with other suppliers?
A: We are TUREMAX, and we always present true info to our client. And most of our clients are reglar customers, and also new buyers would like to repeat orders from us since we are not only sell goods but also servies. And the most important is that we take all customers as our friends.
Q: Can we go to your factory have a look?
A: Of cause yes! You are welcome, and it is our honors.
Address: No. 118 Haifeng Road, Jianshan New Zone, Haining City, Zhejiang Province China

---
