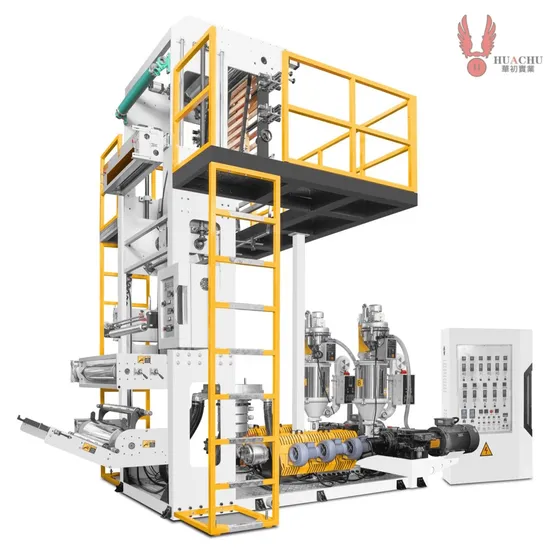

Mini High-Speed ABA, PE Three-Layer Plastic Film Blowing Machine

Product Description

Product Description
Mini High Speed ABA Three-Layer Extruder Film Blowing Machine With Dosing system


Use:
It is used for blowing the plastic laminated film of low density polyethylene (LDPE), high density polythylene(HDPE)and linear low density polyethylene(LLDPE)etc, Which are widely used for packing liquid, printed base material, products for export and industrial products, etc.
Technology Parameter

Model	MINI ABA45X50X1000	MINI ABA45X45X900
Suitable material	HDPE.LLDPE,LDPE	HDPE.LLDPE,LDPE
Diameter of screw	Φ45+50	Φ45+45
L/D	32:1	32:1
Maximum width of film(mm)	900	800
Thickness of film(mm)	HD: 0.01-0.06MM LD:0.03-0.1MM	HD: 0.01-0.06MM LD:0.03-0.1MM
Max.Output(kg/h)	160	140
Driving motor	15KW X 22 KW	15KW X 22 KW
Weight(T)	4	3.8

Details Information


Workshop
Welcome to contact us for more details and prices!!!
Wenzhou brother union imp&exp Co., Ltd is a professional manufacturer of HDPE / LDPE / LLDPE blown film machine, bag making machine ,PE recycle machine and flexo printing machine. "HUACHU MACHINERY" is our brand name , We are committed to creating high-end Chinese-made brands with better quality and stricter details. Insist on researching and development, always striving for innovation and perfection. Innovation, Quality, Service and Satisfactory are our conceptions of lasting conduct.
CONTACT:
Sales:Rahma Zhao

---
