Low Price Standing Seam Roof Forming Machine with CE Certification

Product Description

Product Description

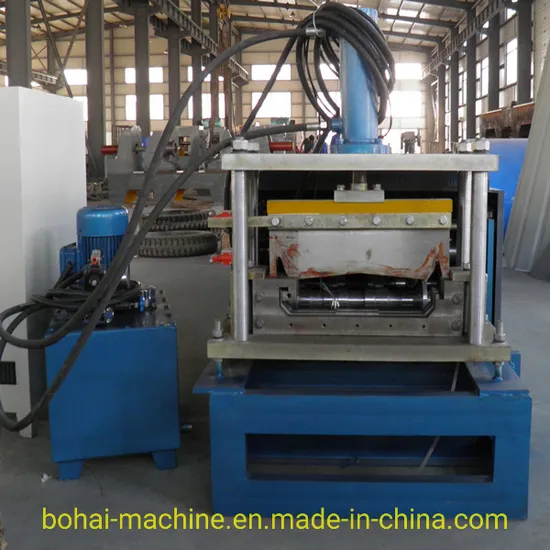

Standing Seam Roll Forming Machine is considered as a Highly effective tool with smaller body.
It can produce metal rool panels by pre-painted steel, zinc-coating or galvanized steel, zincalume/galvalum steel, and occasionally aluminum as well. Fastener-hidden or concealed fixing roof panels produced by this machine is very popular in North America.
We strictly control quality while improving production efficiency. . All the machines produced by us need full line test before leaving the factory. We have full experience of export and know well about the different needs of customers from both developing countries and developed countries.
Product Parameters

Production	Feeding Width	612mm
	Effective Width	475.2
	Material Thickness	0.5-1.3mm
Decoiler	Decoiler Way	Manual Decoiler
	Decoiler Load-Bearing	5T
Roll Forming Machine	Machine Frame	Welded with 250H Beam Steel
	Diameter of Shaft	60mm
	Roll Forming Drive	Chain Drive
	Drive Chain	16A
	Guide-Feed Material Way	Side Direction Roller Type
	Motor Power	5.5kW
	Forming Speed	8-15m/min
	Steps for Roll Forming	12
	Roller Material	Superior 45# Steel Forged
	Thickness of Chrome plated on roller	0.05mm
Cutting Machine	Hydraulic Motor Power	3kW
	Hydraulic Pressure	8-12Mpa
	Hydraulic Oil Pump	Gear Pump
	Cutting Blade Material	Cr12
	Cutting Blade Heat	HRC58-60
	Precision of Cut-to-Length	±2mm
Electric System	Computer	PLC (Panasonic) Optional
	Working Voltage	380V 50Hz 3PH / 220V 60Hz

Unique Panel Roof
Standing Seam Metal Roofing is a fully interlocking roof system. Its unique mechanical-lock design forms a weather-tight unit. With no rivets or screws it is exposed on the surface of the panels. It may be installed on new construction or applied over existing roofs. All trims and caps are designed to ensure an integrated weather-proof roof.
Packaging & Shipping
(1) A 20 GP container can load this standing Seam Roll Forming Machine.
(2) Because there is still left space in the container, so if the customers agree we can load something else, for example Color Steel coils, Galvanized coils or generator units. These materials will be in charge and we can promise the good quality & low price. It will save much transportation fee.
