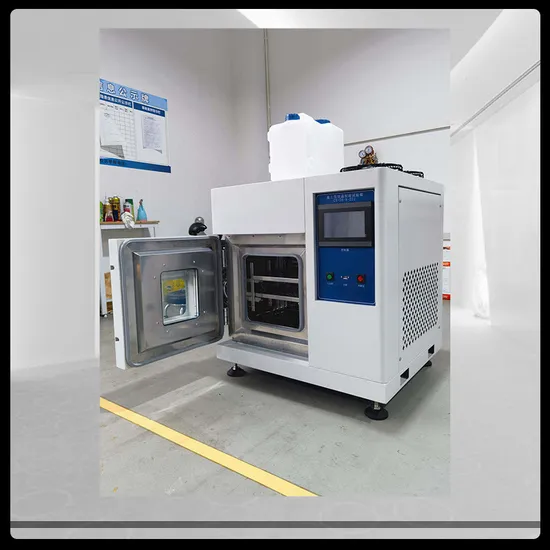

Benchtop Mini Small Constant High Low Environmental Climatic Chamber

Product Description

Product Description
Ce Tuv Environmental Climate Temperature Humidity Test Chamber Price Summary: Temperature Humidity Climatic Test Chamber is applied to test the materials in heat-resistance, cold-resistance, dry-resistance, moisture-resistance. It is simple to operate and program easy to edit. It can show the set values and operative time.

Item Name	Temperature and humidity test chamber/machine
Capacity(L)	80, 150, 225, 408, 500, 800, 1000L(optional, or custom-made)
Performance	Control Methods	Balanced temperature humidity control system (BTHC) PID intelligent adjust
	Temperature and Humidity Range	-70°C~150°C; 20%-98%R.H
	Accuracy	±1.0°C, ±2%RH / ±0.5°C, ±2%RH
	Resolution	±0.1°C, ±0.1%RH / ±1°C, ±3%RH
	Heating Rate	≤3°C/min
	Cooling Rate	Average 1°C/min
	Internal Material	SUS#304 stainless steel
	External Material	SUS#304 stainless steel or Antirust processing cold-rolled steel sheet(Spray)
	Insulation Material	Superfine wool + polyurethane foam
Regulator	Cooling Mode	Mechanical binary refrigeration way
	Compressor	Closed compressor (French Tecumseh or German Copeland )
	Refrigerant	R23/R404A
	Condensing Way	Air-cooling and Water-cooling
	Humidifier	Stainless steel humidifying tube
	Airflow Way	Broadband-type forced air circulation
Controller	Operate Interfaces	Korea TEMI 880 LCD touch screen
	Memory capacity	120 groups, each program 100 segment
	Input	PT100 or T thermocouple
	Communicate Interface	RS-232
	Subsidiary function	Upper and lower alarm; self diagnosis ; alarm display(fault cause); time sequence protection (Automatic turn on or turn off )
Water supply	Water supply	Circulating water supply
	Water tank	Built-in hand type(30Kg capacity)
	Water quality	resistance >500Ω.m
Standard Configuration	One observe window(Double hollow toughened glass); one test pattern D50mm(on the left); 2 layers sample frame; onefloodlight(fluorescent lamp);one water feeding tank;
Safety device	Power leakage protection; Dry heating protection; Water protection Over-temperature protection switch; Temperature deviation alarm, Compressor Overpressure; overload; Water shortage; Phrase shortage, etc.
Power supply	220VAC ±10%50/60Hz & 380VAC ±10%50/60Hz

Speficiation
Featur
Features
Standard: The performance index meets the requirements of GB5170, 2, 3, 5, 6-95 verification methods for basic parameters of environmental test equipment for electrical and electronic products low temperature, high temperature, constant humidity and alternating humidity heat test equipment. Basic environmental test procedures for electrical and electronic products test a: low temperature test method GB 2423.1-89(IEC68-2-1) Basic environmental test procedures for electrical and electronic products test B: high temperature test method GB 2423.2-89(IEC68-2-2) Basic environmental test procedures for electrical and electronic products test CA: constant damp heat test method GB/T2423.3-93(IEC68-2-3) Basic environmental test procedures for electrical and electronic products test Da: alternating damp heat test methodGB/T2423.4-93 (IEC68-2-30) ETC... 1.International Electrotechnical Commission Standard: IEC68-2-03_test method Ca_Steady damp-heat IEC68-2-01_test method A_cold IEC68-2-02_test method B_dry heat2. Standards: MIL-STD-810F-507.4 humidity MIL-STD-810F-501.4 high temperature MIL-STD-810F-502.4 low temperature MIL-STD883C test method 1004.2 temperature and humidity cycling test MIL-STD810D test method 502.2 MIL-STD810 test method 507.2 procedure 33. Japanese Industrial Standard: JIS C60068-2-3-1987 test method Ca: Steady damp-heat JIS C60068-2-2-1995 test method B:dry heat JIS C60068-2-1-1995 test method A:low temperature4. USA Semiconductor Industry Standard: JESD22-A101-B-2004 Constant temperature and humidity test JESD22-A103-C-2004 High Temperature Storage Test JESD22-A119-2004 Low Temperature Storage Test5. Chinese National Standard: GB11158 Technical conditions for high-temperature testing box GB10589-89 Technical conditions for low-temperature testing box GB10592-89 Technical conditions for high and low temperature testing box GB/T10586-89 technical conditions for humidity testing chamber GB/T2423.1-2001 Low-temperature testing methods GB/T2423.2-2001 High-temperature testing methods GB/T2423.3-93 Testing Method for humidity Test Chamber GB/T2423.4-93 Alternating hot and humid testing method GB/T2423.22-2001temperature testing method6. China's National Environment Test Equipment GJB150.3 high-temperature testing GJB150.4 low-temperature testing GJB150.9 hot and humid condition testing Refrigeration system: Compressor: fully hermetic compressor imported from France Refrigerant: Environmental refrigerant R404A Condenser: fin type with heat dissipation motor Evaporator: fin type multi section automatic load capacity adjustment Other accessories: desiccant, refrigerant flow window, repair valve Expansion system: refrigeration system with capacity control Control system: Imported from Korea, all Chinese LCD 7 "LCD touch panel, drawing face to talk input data, temperature and humidity can be programmed at the same time, curve display, set value / display value curve. It supports the direct export of temperature and humidity record data by U disk, and can display various alarms respectively. When the fault occurs, it can display the fault on the screen to eliminate the fault and misoperation. Multi group PID control function, precise monitoring function, and display on the screen in the form of data. Controller specification: 1. Accuracy: temperature ± 0.1 ºC + 1digit, humidity ± 1% RH + 1digit 2. Resolution: temperature ± 0.01, humidity 0.1% R.H 3. With upper and lower limit standby and alarm functions 4. Temperature and humidity input signal selection PT 100 Ω× 2 (dry bulb and wet bulb) 5. Temperature and humidity conversion output: 4 ~ 20mA 6. Six groups of P.I.D control parameter setting, P.I.D automatic calculation, dry and wet bulb automatic correction
Our Advantages
Packaging & Shipping
We have packing teams and shipping forwarder to pack and deliver your products!
Packing: 1. Out packing:Standard export wooden case.
2. Inner packing:With careful stretch film wrap product, hard wood board+ strong bandage to fix corners.
3. Checking teams: Specialized staff to inspect and classified your goods.
Shipping: You can specify other shipping methods such as Airmail, FEDEX or DHL. We shall let you know about the shipping cost after receipt of your order. It's more preferable for you to provide us with your own FEDEX/DHL account number so that the delivery charge can be charged directly from your account.
IEC60695 Glow Wire Flammability Temperature Tester, Glow Wire Combustion Resistance Testing Machine, Glow Wire Burning Tester. FAQ
1.Are your company a trading one or a factory ?
Factory + trade (integration), 20 years focusing on test instruments field, 6 years exporting experience. OEM is also acceptable for us. 2.How to choose the most suitable products? Our team will give you the best suggestion as long as you tell us what kind of test you need to do and the required specification. 3.What's the delivery term? At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20 working days after deposit receipt. If you are in urgent need, we can consider making special arrangement for you. 4.Do you accept customization service? Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will try our best to meet your needs. 5.Can we visit your factory before order? Yes, we warmly welcome and sincerely invite you or your team to visit our factory, we will help to arrange hotel and pick up you from airport.

---
