China manual metal hobby small Z3035*10 radial drilling machine for sale

Product Description

China manual metal hobby small Z3035*10 radial drilling machine for sale
Product Description
Product Parameters
Product main technical Specifications:

Specifications	Z3035×10
Max.drilling diameter(mm)	35
Distance from spindle nose to table surface(mm)	300~1000
Distance from spindle axis to column surface (mm)	260~1200
Spindle travel(mm)	200
Spindle taper	MT4
Spindle speed range (rpm)	75-1220
Spindle speed steps	6
Spindle feed range (mm/r)	0.10/0.16/0.22
Spindle feed steps	3
Main motor power (kw)	2.2
Overall dimension(mm)	1500×750×2150
N/W(Kg)	1200

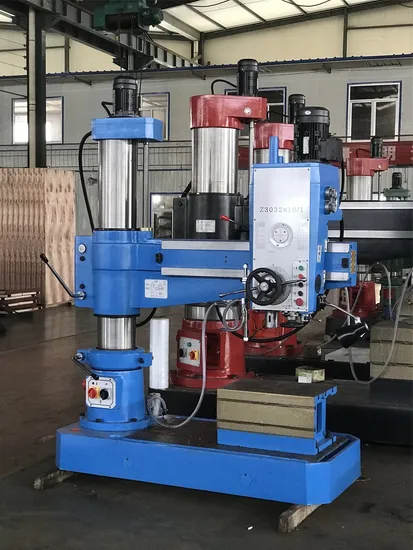

Detailed Photos
Company Profile
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )

---
