Fanuc Germany Double Spindle CNC Turning Center with Twin Y Axis

Product Description

Fanuc Germany Cnc Turning Center With Twin Y Axis

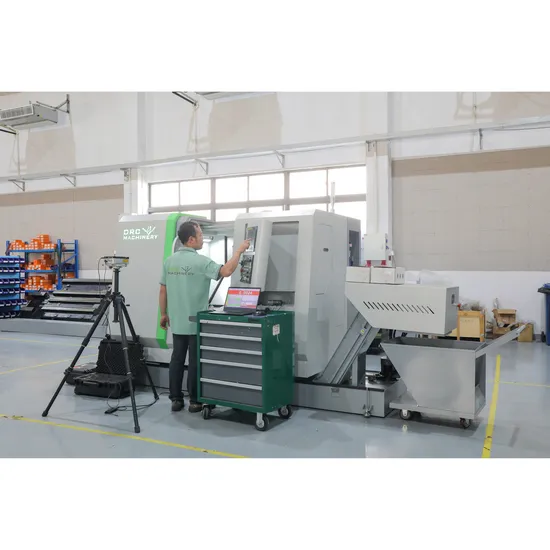

Machine Description CNC lathe is a four-axis linkage, fully closed-loop CNC machine tool. The machine machine-electric-hydraulic integrated layout adopts a fully enclosed protective cover, the door opens to the left, and the operating table is located on the right end of the fixed protective cover, and the ergonomic swing design makes the operation more convenient. Each servo feed shaft adopts high-speed silent ball screw, elastic coupling is directly connected, fast moving speed, low noise, high positioning accuracy and repeated positioning accuracy; the servo motor is equipped with an absolute value encoder, no cumulative error, no memory, No need to find a reference point, the position information will not be lost after the power is cut off. The machine tool has strong functions, high precision, reasonable layout, beautiful appearance, easy operation and convenient maintenance.

Spindle head		FL 140 h5
Spindle maximum speed	rpm	5000
Max. Torque	N/m	112
FANUC Spindle power	kW	11/15
Chuck diameter	mm	210
Spindle bore	mm	74
Front bearing diameter	mm	100
Speed range	rpm	5-5000
Center distance	mm	608
Maximum swing over bed	mm	558
Maximum cutting diameter	mm	340
Maximum cutting length	mm	355
Maximum bar capacity	mm	52(65)
Rapid traverse Z/X	m/min	30/30
Feed force X/Z	N m	4500
VDI/DGQ 3441 Positioning(X/ Z)	mm	0.008/0.008
VDI/DGQ 3441 Repeatability(X/ Z)	mm	0.004/0.005
Maximum clamping force	N	3000
OD tool size	mm	20
Maximum speed	rpm	3000
Voltage	V	380 ±10%
Frequency	Hz	50 ± 1%
Less than	dB (A)	≤80
Net weight :3200 kg		Slant angle, Material : 45°, HT300

---
