SMT Solder Paste Printer Ase Fully Automatic Visual Printing Machine

Product Description

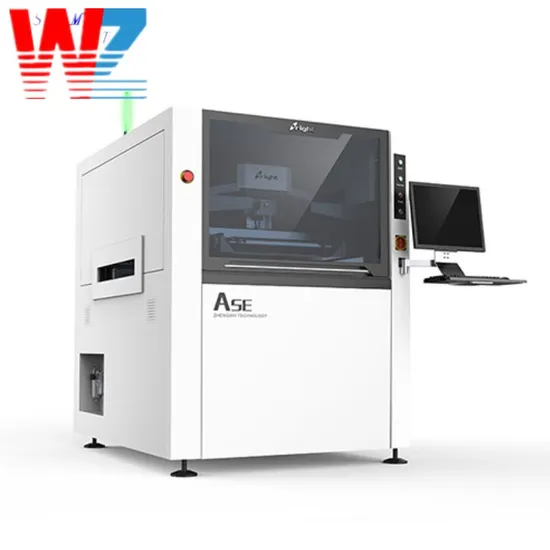

ASE Fully Automatic Visual Solder Paste Printer
Humanized designWide application range stong versatilityUnique sprinkle automatic cleaning systemAfficient energy-saving wiping paper-saving structureUnique image processing systemIntelligent printing product modePrinting range: 400*340mm/510*340mmUse international universal UVW three axis linkage platformMachine dimension: 1220X1355X1500mmMachine option : automatic add solder paste function, automatic stencil inspection function, automatic dispensing system, squeegee pressure feedback function, automatic MSE/SPI online function, automatic constant temperature and humidity function.Specification

Model		Ase
Screen Frames	Min Size	370×370mm
	Max Size	737×737mm
Thickness		25~40mm
PCB Min Size		50×50mm
PCB Max Size		400×340mm
PCB Thickness		0.4~6mm
PCB Warpage		< 1%
Transport Height		900±40mm
Transport Direction		Left-Right;Right-Left;Left-Left;Right-Right
Transport Speed		Max 1500mm/S Programmable
PCB Location	Support System	Magnetic Pin/Up-down table adjusted/supportblock by hand
	Clamping System	side clamping, vacuum nozzle
Print head		Two independent motorised printheads
Squeegee Speed		6-200mm/sec
Squeegee Pressure		0-15Kg
Squeegee Angle		60° /55° /45°
Squeegee Type		Stainless steel(Standard), plastic
Stencil Separation Speed		0.1~20mm/sec Programmable
Cleaning System		Dry, Wet. Vacuum (Programmable)
Table Adjustment ranges		X: ±10mm;Y: ±10mm; θ: ±2°
CCD FOV		8×6 mm
Solder Paste Inspection		2D Inspection Standard
Machine
Repeat Position Accuracy		±0.01mm
Printing Accuracy		±0.025mm
Cycle Time		<7s (Exclude Printing & Cleaning)
Product Changeover		<5Min
Air Required		4.5~6Kg/cm2
Power Input		AC:220 ± 10%,50/60HZ 1Ф 3KW
Control Method		PC Control
Machine Dimensions		1220(L)×1375(W)×1500(H)mm|
Machine Weight		Approx: 1000Kg

Scraper system:
It is applicable for stencils of various sizes. An automatic stencil positioning system saves line changeover time and enhances overall efficiency.
Cleaning system:
The stencil cleaning system is automatic and effective. There are three options for cleaning: Dry cleaning, Wet cleaning, and Vacuum cleaning, which can be used individually or in combination. Manual cleaning is also an option. The cleaning unit is separated from the CCD camera, minimizing the load on the motor and impulse, improving positioning precision and speed, and extending the service life. The sprinkler system ensures even spraying from top to bottom. The software function controls the dosage of alcohol and stencil cleaning paper, effectively saving more consumables. Vacuum cleaning is supported with a dedicated fan, which is powerful and effective.
Operation Interface:
The system uses a Windows XP operation interface, which is easy to learn and offers good man-machine interaction. Programming is designed with teaching and navigation functions, providing guidance at every step. The interface supports Chinese and English.
Operating Journal/Breakdown Record/Breakdown Diagnosis:
The system records operating logs and breakdowns for diagnosis.
Image and Optical System:
The system features a uniform ring light, high brightness coaxial light, and an advanced upper/lower vision system. It offers full range light compensation and automatic, accurate recognition of all type MARK points. It is applicable for PCBs with tin plating, copper plating, gold plating, tin spraying, and FPC, in various colors, ensuring high accuracy.
Right Special Platform Calibration System:
The three axes linkage is designed with super-high dynamic characteristics, allowing for quick adjustment of the PIN jacking height for PCBs of different thicknesses.
PCB Transport & Clamping System:
The unique belt transmission system prevents PCBs from getting stuck or falling off. Programmable motors control transport speed and place the PCB in the precise position. The system allows for flexible selection of the PCB input/output direction. Flexible side clamps and a PCB support vacuum block hold the PCB tightly, ensuring full, even contact between the PCB and stencil.
Why Choose Us?

Established in 2009, Shenzhen Wenzhan Technology Co., Ltd. has been committed to creating an efficient communication platform to better serve our customers. Our team consists of professional engineers with certifications from the original equipment manufacturers for over a decade. We are dedicated to prioritizing our customers' interests and providing top-quality equipment, accessories, and consumables, as well as technical support. To further reduce our customers' costs, we have established our own machining plant, ensuring ample inventory and competitive pricing.

1. Professional pre-sales advice support 2. Excellent after-sales technical service 3. Flexible payment and return policy 4. One-stop solution for SMT Line 5. Sufficient stock and fast deliver

FAQ

What services do you provide?We are a leading provider of SMT machinary and spare parts in Shenzhen China. We offer a full range of SMT products with OEM and ODM services available.

MOQ?One and mixed order are both welcomed.

What are your payment terms?Pay in full before shipment, either in one lump sum or in installments.

What is your delivery time?We typically deliver within 1 week after receiving full payment.

What if I encounter problems with the machine after receiving it?If you face any issues with the machine during the warranty period, we will send you free replacement parts.

How can I purchase a machine from you?The process is simple and flexible:Consult with us online or via email about the product.Negotiate and confirm the final price, shipping, payment methods, and other terms.We will send you a proforma invoice to confirm your order.Make the payment according to the method specified on the proforma invoice.We will prepare your order and conduct a 100% quality check before shipping.We will send your order by air or sea, based on your preference.

---
