Polishing and Grinding Grit Black Silicon Carbide 220 Grit

Product Description

Product Description

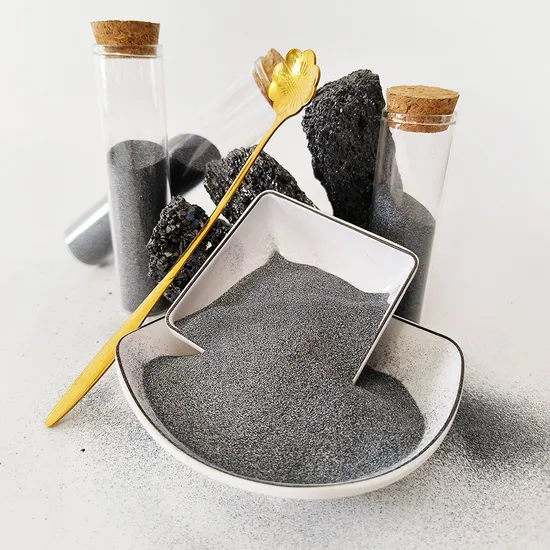

Black Silicon Carbide

Because of the rarity of natural moissanite, most silicon carbide is synthetic. It is used as an abrasive, and more recently as a semiconductor and diamond simulant of gem quality. The simplest manufacturing process is to combine silica sand and carbon in an Acheson graphite electric resistance furnace at a high temperature, between 1,600 °C (2,910 °F) and 2,500 °C (4,530 °F). Fine SiO2 particles in plant material (e.g. rice husks) can be converted to SiC by heating in the excess carbon from the organic material. The silica fume, which is a byproduct of producing silicon metal and ferrosilicon alloys, also can be converted to SiC by heating with graphite at 1,500 °C (2,730 °F).

Product Parameters
Black Silicon Carbide Chemical Composition (%)

Grit	Sic	F.C.	Fe2O3
F12-F90	≥98.50	<0.20	≤0.60
F100-F150	≥98.00	<0.30	≤0.80
F180-F220	≥97.00	<0.30	≤1.20
F230-F400	≥96.00	<0.40	≤1.20
F500-F800	≥95.00	<0.40	≤1.20
F1000-F1200	≥93.00	<0.50	≤1.20
P12-P90	≥98.50	<0.20	≤0.60
P100-P150	≥98.00	<0.30	≤0.80
P180-P220	≥97.00	<0.30	≤1.20
P230-P500	≥96.00	<0.40	≤1.20
P600-P1500	≥95.00	<0.40	≤1.20
P2000-P2500	≥93.00	<0.50	≤1.20

Black Silicon Carbide Physical Index

Grits	Bulk Density g/cm3	High Density g/cm3	Grits	Bulk Density g/cm3	High Density g/cm3
F16 ~ F24	1.42~1.50	≥1.50	F100	1.36~1.45	≥1.45
F30 ~ F40	1.42~1.50	≥1.50	F120	1.34~1.43	≥1.43
F46 ~ F54	1.43~1.51	≥1.51	F150	1.32~1.41	≥1.41
F60 ~ F70	1.40~1.48	≥1.48	F180	1.31~1.40	≥1.40
F80	1.38~1.46	≥1.46	F220	1.31~1.40	≥1.40
F90	1.38~1.45	≥1.45

Black Silicon Carbide Size Available

F12-F1200, P12-P2500
0-1mm, 1-3mm, 6/10, 10/18, 200mesh, 325mesh
Other special specifications could be supplied on request.
Recommend Products
Application Scenarios For abrasive: Lapping, Polishing , Coatings, Grinding , Pressure blasting.
For refractory: Refractory media for casting or metallurgical linings ,Technical Ceramics.
For new-type application: Heat exchangers ,Semiconductor process equipment , Liquid filtration.
Packaging & Shipping 1. 25kg woven bag, 40 woven bags/jumbo bag.
2. 25kg woven bag, 40 woven bags/pallet
3. 25kg paper bag, 40 paper bags/pallet
4. 25kg paper bag, 40 paper bags/paper box
