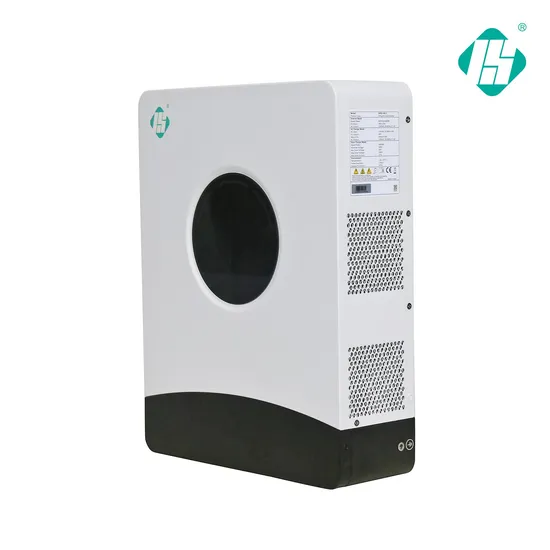

Gpeo-6kl1 Series IP54 Rated off Grid Inverter Solar Energy Inverter Hybrid Inverter 6000W MPPT LCD Pure Sine Wave Inverter

Product Description

Gp-6kl1 IP54 6kw 7.5kVA 48V 120A MPPT Hybrid Solar Inverter Detailed Photos

		GPEO-4KL1	GPEO-6KL1	GPEO-11KL1
PV (DC Input)	Recommended max. PV input power	4000W	6000W	11000W
	Max. input voltage(Voc)	500V	500V	500V
	MPPT operating voltage range	85V-450V (@85V start up)	85V-450V (@75V start up)	85V-450V (@75V start up)
	Number of MPPT	1	1	2
	Max. number of input strings per MPPT	1	1	1
	Max. input current per MPPT	15A	27A	27/13(MAX:40A)
	Max. short-circuit current per MPPT	18A	35A	37A/17.5A
Grid (AC Input)	Max output power	5000W	11500W	16000W
	Rated grid voltage	220/230/240Vac	220/230/240Vac	220/230/240Vac
	Rated grid frequency	50/60Hz	50/60Hz	50/60Hz
	Acceptable range	170-280Vac (For UPS) ; 90-280Vac (For Home Appliances)	170-280Vac (For UPS) ; 90-280Vac (For Home Appliances)	170-280Vac (For UPS) ; 90-280Vac (For Home Appliances)
Battery Parameters (Bidirection)	Battery type	LiFePO 4/Lead-acid	LiFePO 4/Lead-acid	LiFePO 4/Lead-acid
	Battery voltage range	20~30Vdc	40~60Vdc	40~60Vdc
	Rate Battery Voltage	24Vdc	48Vdc	48Vdc
	Max. charge/discharge current	120A/135A	120A/130A	210A/240A
	BMS communication mode	RS485	RS485	RS485
Back-up Output (AC Output)	Rated output power	3600W/3600VA	6000W/6000VA	11000W/11000VA
	Rated output current	16.4A	27.3A	54.5A
	Rated output voltage / Frequency	220/230/240Vac 50/60Hz	220/230/240Vac 50/60Hz	220/230/240Vac 50/60Hz
	Parallel Capacity	-	Max. 12 Units	Max. 12 Units
	Surge power	7200VA 5s	12000VA 5s	22000VA 5s
	THDv (@ linear load)	<3%	<3%	<3%
	Switching time	10ms typical (For UPS) 20ms typical (For Home Appliances)
Efficiency	Peak efficiency	95.00%	98.00%	98.00%
	Max. MPPT efficiency	99.90%	99.90%	99.90%
Protection	Inner protection	√ Output short-circuit protection √ Output overvoltage protection
	Surge protection	PV: Type III, AC: Type III
	IP rating	IP54
General Parameters	Operating temperature range	-10°C ~ 55°C
	Relative humidity range	5%~95%	5%~95%	5%~95%
	Max. operating altitude	>2000m derating	>2000m derating	>2000m derating
	Standby self-consumption	<10W	<10W	<20W
	Installation type	Wall-mounted	Wall-mounted	Wall-mounted
	Cooling mode	Fan cooling	Fan cooling	Fan cooling
	Communication	RS232/RS485/Dry contact/WI-FI	RS232/RS485/Dry contact/WI-FI	RS232/RS485/Dry contact/WI-FI
	Display	LCD	LCD	LCD
Mechanical Specifications	Inverter dimensions (L*W*H) (mm)	444.7*346.6*120	444.7*346.6*120	630*535*125
	Net weight (kg)	9.2	12.4	25
	Shipping dimensions (L*W*H) (mm)	560*465*240	560*465*240	745*650*240
	Gross weight (kg)	11.4	14.6	27.2
	Warranty Period	3 Years

FAQ
1. What is your company strength?
Strong R&D Team Headquartered in Shanghai, Lersion R&D team has over 50 engineers. Relying on Shanghai's rich talent resources and innovating mechanisms, through deep cooperation with Shanghai universities, we design and continually improve solar inverters and battery circuit,and have obtained over 30 patents.
2. What is your product advantage?
1KW-500KW Full Series Solar Inverter available Germany Infineon IGBT Module America DSP Chip Technology Color Touch screen *More Durable*More Safe* more stable *High End LiFePO4 & Gel battery Expert Grade A Lithium Battery Long cycle life >6000 cycles High Efficiency & Fast Charging Intelligent Battery Management Compatible with Various Inverters
3. How do you control the product quality?
a) For materials, we have IQC departments and the IQC testing follow MIL-STD-105E standard. b) In production have 4 times function testing. c) All of our products with 100% burn-in testing. d) 100% QC testing before delivery.
4. Do you accept OEM/ODM?
Yes, we do.
5. Are you factory ?
Definitely.
6: Can you provide full solar system?
Yes,we provide full set soalr system ,with system design and full system equipments provided
7.How about the delivery time?
3 to 5 days for sample; 7-15 days for bulk order.
8.What is the warranty of inverter?
A4: 2 years ,3 years,5 years Etc
9: How to solve the technical problem?
24 hours after-service consultancy just for you and to make your problem to solve easily.

---
