Cut-in Centerless Grinding Machine O. D. Through Grinding Machine

Product Description

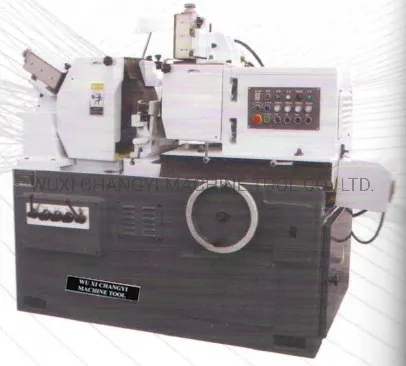

M1083B centerless grinder
M1083B Centerless grinder
Machine tool main characteristics
Through-grinding
Through grinding is mainly used to grind the cylindrical surface of all kinds of ring and shaft parts.
Cut-in grinding
Cut-in grinding is used for manual cut-in grinding of various stepped, conical and cylindrical rotating surfaces.
The machine bed adopts normalized heat treatment and natural aging treatment of high-quality castings to stabilize the internal structure and ensure strong wear resistance and small deformation in the process of use.
Grinding wheel, guide wheel device.
The grinding wheel is a cantilever structure, and the spindle of the grinding wheel adopts multi-piece long bearing dynamic pressure oil film bearing.
The regulating wheel is a cantilever structure, and the spindle adopts integral 1:30 conical sliding bearing.
Machine Tool main features
The main shaft of the lubrication device is lubricated by an independent lubricating oil tank.
The guide rail of the guide wheel frame of the feed device adopts flat V-type hydraulic unloading guide rail.
Dressing device grinding wheel, guide wheel dresser reciprocating are hydraulic transmission, stepless speed regulation.

Technical data
Plunge-feed
Grinding diameter	10-100mm
Grinding length	195mm
Through-feed
Grinding wheel specification	10-100mm
Grinding length	210mm
Grinding wheel specification	P500X200X305mm
Regulating wheel specification	PDA350X200X203mm
Grinding wheel speed	1338rpm
Regulating wheel speed	10-200rpm
Swiveling angle of regulating wheel
Vertical	-2°~+5°
Horizontal	0°~+3°
Feed/Division	0.002mm
Dresser Feed Amount/Division	0.01mm
Height from center line of grinding wheel and regulating wheel to work rest	255mm
Total power
Grinding wheel motor	18.5kw
Regulating wheel motor	2.2kw
Power supply	3N 50Hz380V
Dimension |(L*W*H)	2675*1505*1615mm
Machine weight	4500kg
Accuracy ( Standard bars)
Roundness	0.002mm
Cylindricity	0.003mm
Surface roughness	Ra0.32um

---
