Product Details
Product Description
Product Description

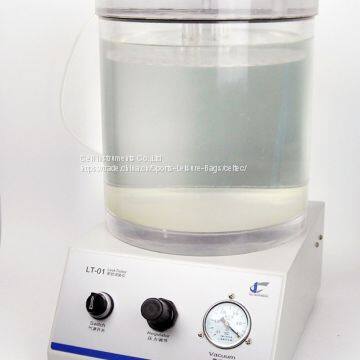

Leak Tester checks the airproof property of packages, containers, bags, pipes. package airproof tester is widely used in food, beverage, pharmaceutical, daily chemical, electrical and electronic industries, etc.
Working principle
A test sample is placed into a vacuum chamber with water and the air above water level is evacuated by a venturi vacuum ejector. A great pressure difference is created inside and outside the sample and any slight leakage can be observed and identified when the sample is inflated.
Leak Tester uses vacuum generate to produce a stable vacuum environment.
1. The leak test requires no electricity
2. High leak test efficiency
3. Extra-thick perspex
4. Different chamber sizes available
5. No calibration is needed
6. No vacuum pump required
7. Easy installation, start-up and operation
8. Low maintenance
Technical Specification
Vacuum:0~-90KPa/0~-13PSI
Vacuum chamber size: Φ270 mm x 210 mm (H) ( Customization available)
Gas source: Compressed air
Gas Pressure: 0.7MPa/101.5PSI
Standards
ASTMD3078 , GB/T 15171
>>
