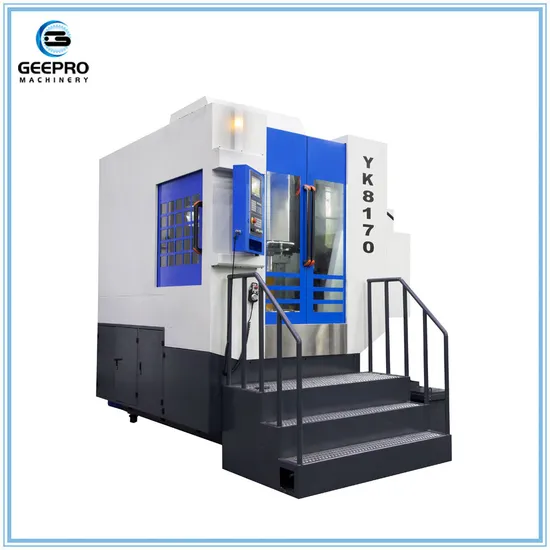

Max. Dia 800mm 7 Axis CNC Vertical Power Gear Skiving Machine for Internal External Straight Helical Gear

Product Description

We are a professional gear equipment manufacturer, we have factories, mainly dealing with gear processing machines; or traders, agent of gear grinding machines, honing machines, grinding machines, lathes and other kinds of machine tools, to provide turnkey projects for customers in the machinery industry.

Machine Characteristics Δ The machine features 7 CNC axes with four-axis synchronized control for motion. Δ It can process internal and external straight teeth, helical teeth, and more. It comes equipped with software for internal and external gear processing. Δ The main spindle and worktable adopt a direct drive structure, providing stable transmission accuracy suitable for large cutting depths and heavy machining. Δ It includes a tool magazine with 8 tools and is equipped with two sets of probing systems for tools and workpieces, capable of detecting the positions of both tools and workpieces separately. Δ It can perform rough and finish turning of gears, single-flank turning, and offset angle turning. Δ The machine can also incorporate turning and drilling functions. Δ Special processing software is available for micro-conical teeth, crowned teeth, K-type teeth, and other special tooth forms. Δ The machine offers excellent rigidity, stable precision, high efficiency, and simple operation. Δ The tool post can rotate freely within ±25° and is equipped with a locking device. Δ It provides signal interfaces for external automation, allowing for the integration of automated storage bins to achieve automatic loading and unloading; it can also be paired with robots for automated processing. Δ A wet magnetic chip evacuation system is used, facilitating rear chip disposal. Δ A dedicated operation interface with menu-style input ensures simplicity and ease of use.

YK8170 The main technical parameters
Max workpiece diameter mm	800
Max machining module	8
Max. axial feed stroke mm	500
Max. tool holder swivel angle A1	±30°
Max. number of teeth to be machined	5~1000
Max. spindle speed rpm	1300
Spindle speed ratio/torque Nm	direct drive/800
Max. table speed rpm	600
Table speed ratio/torque Nm	direct drive/800
Total power supply KVA	110
Spindle motor power KW	50
Table motor power KW	50
Floor space of main machine(LxW) mm	3800x2700
Total floor space(LxW)(including chip conveyor) mm	2630x3920
Machine height mm	3400
Machine weight kg	≈15000

equipment with online measuring system
we provide trial cutting for customer size available.
