Chinese Manufacturer of Stone Jaw Crusher Machinery for Sale

Product Description

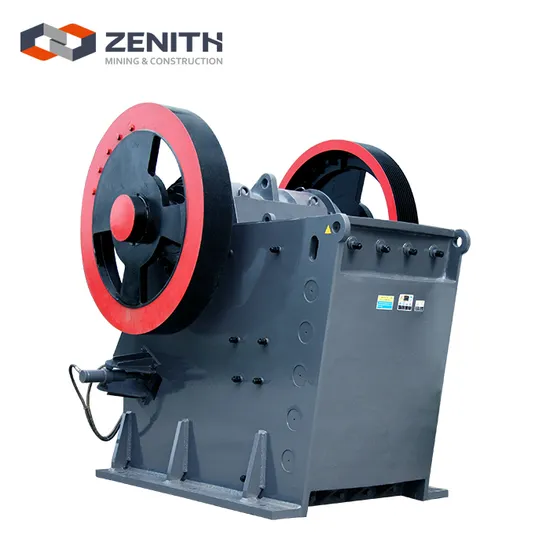

Chinese Manufacturer of stone jaw crusher machinery for sale
Introduction of stone jaw crusher machinery

The stone jaw crusher machinery is widely used crushing equipment. It has two types, single-toggle type and double-toggle type.

Generally, the single-toggle stone jaw crusher machinery is applicable for coarse/medium crushing ores and rocks with compression strength under 300Mpa. The three models of stone jaw crusher machinery can also crush ores and rocks of different hardness. The PEW single-toggle stone jaw crusher machinery used for fine crushing is applicable for ores and rocks with medium hardness and below, and the double-toggle stone jaw crusher machinery can be used to crush ores and rocks with various hardness and high corrosion.

Features of stone jaw crusher machinery

1. High crushing ratio, well-distributed final product size.
2. Discharge opening of the stone jaw crusher machinery is adjustable reliably within a wide range through the stuffing of shim, thus it is capable to meet various requirements of customers.
3. lubrication system of it is safe and reliable, which boasts an easy and convenient maintenance.
4. simple structure, reliable performance, low maintenance cost.
5. little dust and low noise.
Working principle of stone jaw crusher machinery

The stone jaw crusher machinery is mainly composed of frame body, movable jaw part, toggle plates, locking devices with pull-rod spring and driving devices. The movable jaw is driven by motors for complex pendulum through triangle belt. Once the ores are poured into the crushing cavity crush, they will be extruded, split and bended due to the action of the swing jaw. The crushed ores will be discharged out at the moment when the swing jaw leaves the fixed jaw plate.


stone jaw crusher machinery technical data:

Model	Feed Opening (mm)	Max Feeding (mm)	Discharge Opening (mm)	Capacity (t/h)	REV (r/min)	Power (kw)	Motor Model	Machine Size (mm)
PEW250×1000	250×1000	220	20-40	15-50	330	6-37	Y250M-6/37	1400×1850×1310
PEW250×1200	250×1200	220	20-40	20-50	330	6-37	Y250M-6/37	1400×2050×1310
PEW400×600	400×600	350	35-85	15-70	250	6-37	Y250M-6/37	1920×1460×1840
PEW760	760×1100	620	75-200	150-350	270	6-110	Y315L1-6/110	2600×2500×2200
PEW860	860×1100	720	100-225	200-500	240	6-132	Y315L2-6/132	3300×2320×3120
PEW1100	1100×1200	930	150-275	300-650	210	8-185	Y355L1-8/185	4140×2660×3560

---
