Used or New Sanny Cement Mixer Truck Sy206c for Affordable Concrete Mixing

Product Description

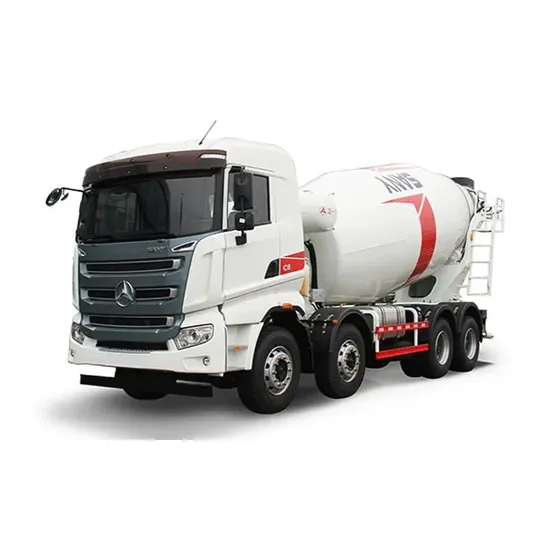

Used or new Sanny Cement Mixer Truck Sy206c for Affordable Concrete Mixing
Company Profile

Qingdao Shanhai Construction Machinery Co. Ltd. is a multi-region, networking,informational,intelligentize with supply management ability of import and export and comprehensive logistics company.We mainly engage in business of China construction machinery all of the world.
Our main products include concrete pump truck, mixer truck, mixing plant, truck-mounted pump, trailer pump,wet shotcreting machine, stationary crushing line, filling pump, electric mixer trucs, electric loader, micro-mixer pump, electric refrigerated truck, electric forklift, electric sweeper, electric sprinkler, electric dump truck, electric heavy-duty truck, electric light-duty truck, mortar station, dry mixing station, sand making building, mobile crushing equipment, and EPC turnkey business, ERP intelligent commercial concrete, construction PC/ALC product, wind power, photovoltaic, energy storage, hydrogen energy, power exchange station and various types of equipment, complete sets of road machinery, excavator, piling equipment, crane, mobile port equipment, roadheading machinery, firefighting equipment, coal equipment, petroleum equipment, etc.. we deal with well-known brands such as SANYY Chery etc.
Product Parameters

Model	SY206C-8Y()	SY306C-8(R)	SY308C-6W
Rudder direction	Left	Right	Left
Curb weight (kg)	8000	11100	11500
Full load weight (kg)	22400	25500	30700
Dimension (L×W×H) (mm)	7800mm×2480mm×3605mm	8370×2530×3700	8570×2530×3800
Wheel base (mm)	4200	3225+1350	3225+1350
Min. ground clearance (mm)	≥ 225	≥ 240	≥ 240
Min. turning diameter (m)	≤ 16	≤ 16	≤ 16
Fuel consumption (L/100km)	≤ 28	≤ 35	≤ 38
Braking distance (V0=30km/h) (m)	≤ 10(Full load); ≤ 9(Empty load)	≤ 10(Full load); ≤ 9(Empty load)	≤ 10(Full load); ≤ 9(Empty load)
Engine	Yuchai YC4EG200-50	Hino J08E-VA	Weichai WP10.270E32
Displacement (L)	4.73	7.684	9.726
Rated power/Rev speed (kW/rpm)	147/2500	202/2200	199/2200
Max. torque/Rev speed (N.m/rpm)	735/1300-1500	1000/1500	1100/1200-1600
Emission standard	Euro 5	Euro 3	China 3
Gear-box	Fast 8JS75F-C	Fast 9JS119TA	Fast 9JS119TA
Front axle	5T	5T	5T
Middle, rear axle	13T	2X11.5T	2X11.5T
Cab	SSany Cab	sSany Cab CB318	sSany Cab CB318
Tyre	12R22.5	10.00R20	10.00R20
Brake type	Pneumatic dual-circuit drum brake	Pneumatic dual-circuit drum brake	Pneumatic dual-circuit drum brake
Fuel tank	170L	200L	200L
Mixing capacity (m3)	6	6	8
Feeding speed (m3/min)	≥3	≥8	≥8
Discharge speed (m3/min)	≥2	≥5	≥5
Discharge residual rate	≤ 0.5%	≤ 0.5%	≤ 0.5%
Slump scope (mm)	50 -210	50 -210	50 -210
Water tank capacity (L)	300	600	400
Water pressure (Mpa)	0.35 - 0.38	0.35 - 0.38	0.35 - 0.38
Reduction gear	TOP T60	TOP T60	PMB6.5
Oil pump	Sanyyy 56	Sanyy 90	Sanyy 90
Motor	Sanyy 63	Sanyy 90	Sanyy 90

Features
Specialized Cab

· Safe and secure
· Built for the driver
· Convenient ACCESS maintenance
· Attractive styling
· Panoramic monitoring (optional)
Improved Braking
· By making full use of exhaust valve braking technology, braking distance has been reduced by 15% and brake lining wear is decreased by 50%. SSany uses a high-volume air compressor, high quality piping, and new sealing technology that shortens air build up time and brake response time.
Energy-saving Technology
· The engine dual power mode, coupled with the unique intelligent transmission's power matching technology makes a 10% fuel savings.
Low Deck Technology
· The frame is made of high-strength special steel plates, improving reliability and safety. It uses SSany's original subframe-free structure combined with the hollow front and back-end structure design, reducing the center of gravity by 100mm and making the vehicle lighter.
Leading Edge Steering Technology
· The large displacement power steering pump reduces operator effort by 40%. Optimized chassis geometry and front axle steering angle reduces the minimum turning radius by 15%.
Anti-buildup Technology
· The three-section blade provides an efficient discharge angle.
· The flushing device, an innovative front taper and ball-crown connecting structure are installed at the rear taper, in order to clear stagnant aggregate from the dead space, and to prevent aggregate from piling up at front and rear tapers. Due to this, the residual rate at the discharge port declines to 0.4%.
Smart Operating Technology
·Each truck is equipped with a GPS system, which features five functions including vehicle monitoring, record/playback, alarm reporting, fleet management, statistics and analysis. With this information you can keep good management of the mixer truck's location, maintenance items, discharge, etc.
Maintenance Tips
· Dashboard mounted monitor provides maintenance alarms for the truck's key components such as engine, axle, and transmission in order to facilitate maintenance scheduling.

Detailed Photos


Our team
A global heavy industry machinery export demonstration base was established in Qingdao Shibei District, and " SANYY. Construction Machinery International Market (Qingdao) Demonstration Project" is built jointly by SANYY.Heavy Industry (Shandong) and Qingdao Shanhai Construction Machinery Co., Ltd., jointly promoting new domestic and second-hand construction machinery is sold overseas, jointly creating a demonstration project integrating global trade and services for construction machinery.


Delivery by sea
FAQ
1:What are your main export products?
A1:Used Concrete pump truck,Used concrete mixer truck,Used trailer concrete pump,Used concrete line pump,Used Truck mounted concrete pump,Concrete batching plant,and Its Concrete umps spare parts; Excavators,Used Truck Cranes etc.
2: What is the minimum order quantity for your Used concrete pump truck,mixer truck,Truck Cranes?
A2: The MOQ is 1 unit.
3: Which payment method can you accept?
A3: Normally we can work on T/T term
4: How is your delivery time?
A4: After the equipment has been tested to ensure that the product is qualified, the delivery will be carried out, The shipping time is then estimated to be 15-45 days. depending on destination.
5:How do l know the condition of the original used or re-manufacturing concrete pump truck?
A5: We will provide a video of the specifications and the test of the pump truck before we ship to you.
6: How long can you respond to customer inguiries?
A6: Our team is professional working 24*7 to respond client inquiries in time. Most problems can be solved within 6 hours.
Welcome to contact
Contact : Lisa

---
