Hot Sale Hexagonal Wire Mesh Weaving Machine for Construction

Product Description

Machine Introduction

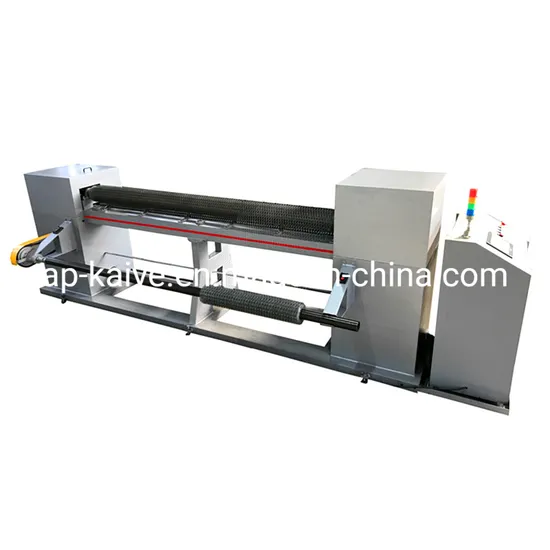

Automatic positive and negative twist hexagonal wire mesh machine

1.Based on the principle of straight and reverse twisted method , it is unnecessary to make wire spring form to work , so the production increased a lot. 2.The hexagonal mesh can be widely used in fences of farmland and grazing land,reinforced ribs of building walls and other usages.
3.The machine have adopted automatic stop system, when meet broken wires or broken mesh it will stop automatically ,so only need 1 or 2 people can handle this machine successfully.

Machine Specification

Model Mesh size	Maximum machine width (mm)	Mesh width (mm)	Maximum wire diameter (mm)	Theoretical production efficiency		Dimensions (mm)
				Mesh/min	M2/h
KY-1/2 (16.3 mm)	2600	2000 or 1200*2	0.7	60	50	4800*1300*1600
	3000	1500*2 or 1000*3	0.7	60	60	5200*1300*1600
	4000	2000*2 or 1200*3	0.7	60	70	6500*1300*1600
KY-3/4 (22.85 mm)	2600	2000 or 1200*2	1.0	55	62	4800*1300*1600
	3000	1500*2 or 1000*3	1.0	55	72	5200*1300*1600
	4000	2000*2 or 1200*3	1.0	55	82	6500*1300*1600
KY-1 (28.6 mm)	2600	2000 or 1200*2	1.2	50	66	4800*1300*1600
	3000	1500*2 or 1000*3	1.2	50	76	5200*1300*1600
	4000	2000*2 or 1200*3	1.2	50	86	6500*1300*1600
KY-2 (57.2 mm)	2600	2000 or 1200*2	2.2	45	159	4800*1300*1600
	3000	1500*2 or 1000*3	2.2	45	169	5200*1300*1600
	4000	2000*2 or 1200*3	2.2	45	179	6500*1300*1600

Finished product

Mechanical Advantage

Mechanical width. The standard mechanical width has three dimensions: 2600 mm, 3000mm and 4000mm (actual width of hexagonal wire mesh).

Spool frame. The overall size of the spool frame is moderate and does not occupy a lot of space. Spools of different sizes can be placed.

Spooling machine. Each set of machinery is equipped with a shaft beating machine, which can wind 12 spools at the same time.

Thorn axis. The positioning of each thorn is accurately measured to ensure that the mesh size is accurate and beautiful.

Humanity design. According to many years of production experience and many customers' feedback, we add more humanized functions to the machine, such as adding operation buttons and automatic stop without wires.

Company Information

Factory History.
Hebei Kaiye Machinery Equipment Co., Ltd. was established in 2002. We are mainly engaged in the R & D, design, production and sales of CNC steel wire processing equipment, providing overall solutions for CNC steel wire processing. Products are widely used in railway, highway, bridge, tunnel, real estate, animal husbandry and other large-scale infrastructure construction, steel processing and distribution center and other fields.

Main production machinery
We have our own production base of intelligent reinforcement processing equipment and advanced testing equipment. Our main products: wire mesh welding machine, EPS 3D panel machine, reinforcement mesh welding machine, Gabion mesh machine, hexagonal wire mesh machine, wire drawing machine, expanded metal machine,chain link fence machine, CNC stirrup rebar bending machine.

Factory R&D Team
The factory has a strong and experienced R&D team. The average working experience of each engineer is more than 8 years.
Our technology is along the most advanced international route, and we can design reasonable solutions according to the requirements of customers.

Certifications

Customer and Market

We have partners all over the world
Kaiye's quality has been managed by the standard of ISO9001 International Quality Management System. We have built good reputation among our customers with excellent quality products, reliable services and credit. We have been supplying the domestic market and also have exported to the Romania, Turkey, poland, Ukraine, Russia, Kazakhstan, Saudi Arabia, Vietnam, Philippines, India, Thailand, South Africa, Algeria, Australia, Mexico, Colombia, Argentina, Bolivia and Brazil.

Why choose us
Q:Where is your factory located?A: Our factory is located in Anping county, Hebei Province of China. The nearest airport is Beijing airport or Shijiazhuang airport. We can pick you up from Shijiazhuang city.Q: How many years are your company engaged in the wire mesh machines?A: More than 20 years. We have our own technology develop department and testing department.Q: Can your company send your engineers to my country for machine installation, worker training?A: Yes, our engineers went to more than 60 countries before. They are very experienced.Q: What's the guarantee time for your machines?A: Our guarantee time is 2 years since the machine was installed in your factory.Q: Can you export and supply the customs clearance documents we need?A: We have much experience for exporting. And we can supply the CE certificate, Form E, certificate of origin etc, your customs clearance will be no problem.
If you are interested in our machines,
please contact us now,
We will provide you with professional and reasonable solutions.

---
