HDPE PPR Plastic Water Pipe Making Machine Pipe Line Tube Extrusion Machine PE Pipe Machine Plastic Extrusion Line

Product Description

Keep on going for new technology on plastic extrusion is our target. Welcome to contact us!
Technical parameter of high efficient HDPE pipe line

Pipe outer diameter	Extruder	Maximum Capacity(kg/h)	Power(kw)
Ø20-Ø63	SJ60/38	320	70
Ø20-Ø110	SJ60/38	380	90
Ø40-Ø160	SJ60/38	460	110
Ø50-Ø250	SJ75/38	600	160
Ø110-Ø450	SJ90/38	850	250
Ø250-Ø630	SJ90/38	1050	280
Ø500-Ø800	SJ120/38	1300	355
Ø710-Ø1200	SJ75/38 SJ90/38	1450	160/250
Ø1000-Ø1600	SJ90/38 SJ90/38	1900	280/280

Technical parameter of Classical HDPE pipe line

Pipe outer diameter	Extruder	Maximum Capacity(kg/h)	Power(kw)
Ø20-Ø63	SJ65/33	220	55
Ø20-Ø110	SJ65/33	220	55
Ø50-Ø160	SJ75/33	400	110
Ø90-Ø250	SJ75/33	400	110
Ø160-Ø450	SJ90/33	500	160
Ø400-Ø630	SJ120/33	850	280
Ø500-Ø800	SJ120/33	850	280
Ø315-Ø630	SJ120/33	850	355
Ø500-Ø800	SJ150/33	1100	400

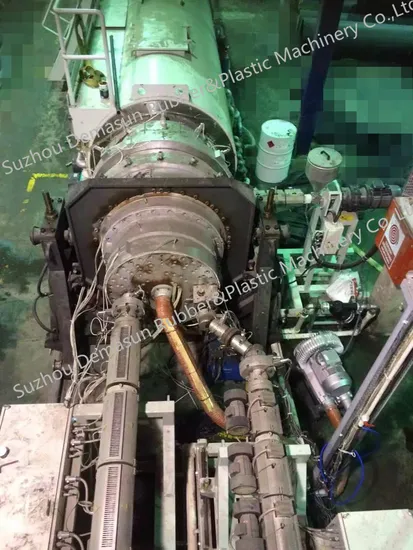

Single Screw Extruder High production efficiency, Steady running, lower maintenance cost. Optional PLC control system or Manual type is optional at customer's requests for machine operation. Superior quality of high speed gear box, with advantages of high torque, high speed, low noise, hard gear tooth face, it can prolong its service life Siemens, ABB, RKC, Omron and so on, as Standard Electrical Part. Optional choice: weight per meter for material control device, can make sure the weight of per meter for extruded pipe

---
