Quality Priority 50 Gallon Mixing Tank

Product Description

Product Description

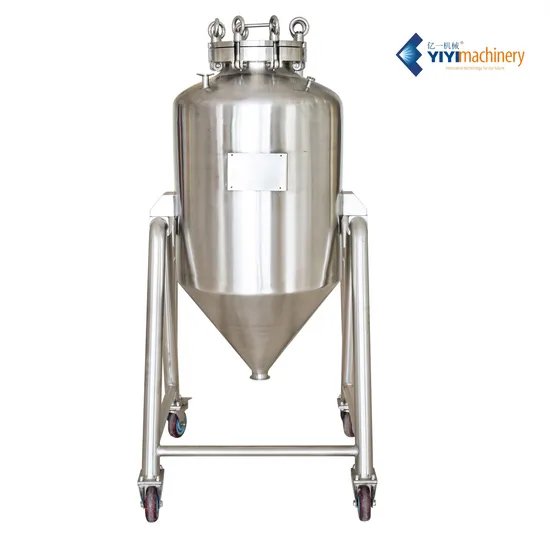

Quality Priority 50 Gallon Mixing Tank
Application
The sanitary storage tank is manufactured by our company according to the quality standard. The tank body and liner are all made of SUS316L or SUS304 stainless steel. The inner surface of the tank is mirror polished, the roughness Ra≤0.4μm, and the outer insulation wall is made of SUS316L or SUS304 stainless steel. Widely used in room temperature or frozen storage storage of liquid or gas materials in pharmaceutical, food, chemical, biological products. It is usually used to store extracts, ethanol, acids, alkalis, gases, etc.
Classification
Sanitary storage tanks are divided into vertical stainless steel sanitary storage tanks, horizontal stainless steel sanitary storage tanks by shape; into stainless steel pressure vessels, non-stainless steel pressure vessels by pressure; divided into: single-layer storage tank, double-layer storage tank (with insulation layer), and three-layer storage tank (with insulation and jacket) by structure.
Composition
The sanitary storage tank is mainly composed of the tank body and accessories. Sanitary storage tanks are mainly composed of cylinder body, outriggers (or lugs), upper and lower heads, jackets and insulation layers. The cylinder of the storage tank is cylindrical, the upper and lower heads are standard oval or butterfly heads, and the main material is 304 or 316L stainless steel. The insulation material is mostly polyurethane or rock wool, with a thickness of 50mm~100mm.
The accessories mainly include sanitary manholes, sight mirrors and lights, material liquid inlet and outlet, CIP cleaning ports and other options such as: liquid level gauge, thermometer, cleaning ball, respirator, weighing module, pressure gauge, safety valve etc.
All parts in contact with the liquid medicine are made of 304 or 316L stainless steel, which has the characteristics of non-toxicity, no shedding, and good corrosion resistance. Not only can the quality of medicines and food be guaranteed, but also the service life of the equipment is long.
Detailed Photos

Product Parameters

Model	Volume	Tank size	Total high	Hole diameter
YST-500P	500	⊘840*1000	2250	38
YST-600P	600	⊘920*1000	2300	38
YST-700P	700	⊘990*1000	2300	38
YST-800P	800	⊘950*1220	2500	38
YST-900P	900	⊘1010*1220	2500	38
YST-1000P	1000	⊘1060*1220	2550	51
YST-1500P	1500	⊘1160*1500	2850	51
The volume and the size are customizable.

Packaging & Shipping
All of our products are packing by wooden case or paper box, delivery by air, ship or express.
Company Profile
With 3800 square meters workhouse, we have kinds of processing machines such as lathes, laser cutter, metal rolling machine, polishing machine, spinning machine, pipe cutting machine, sheet bending machine, automatic puncher, automatic welding machine, CNC machine center and so on. Various processing is possible to complete the requirements of clients.
Our Products
Our products list
Storage Tank
Moblie Tank,
Mixing Tank
Concentrator
Extraction Tank
Heat Exchanger
Pan Machine
CIP Cleaning Line
Filter
Fermenter
Reaction Kettle
Sterilizer
Accessory
After Sales Service
We provide a one-year warranty and consulting services.We can discuss in English on phone or online chating.
FAQ
1. Are you real factory or trade company?
A: We are real factory locoal in Fujian, China. Welcome to visit our factory.
2.About the warranty.
A: Warranty is one year, our engineer will help you install and commission the machines.
3.Can you provide instant services?
A: Yes, we can discuss in English on phone or online chating.
4.Are you produce the standard machine or customizable models?
A: All of our products are customizable, please send us your requirement and other details.
5.What is the lead time?
A: According to the production, different size, different time.
6.Could you send the catalogues and technical documents?
A: Yes, please leave your email.
7.What about the after-sales?
A: We provide a one-year warranty and consulting services.

---
