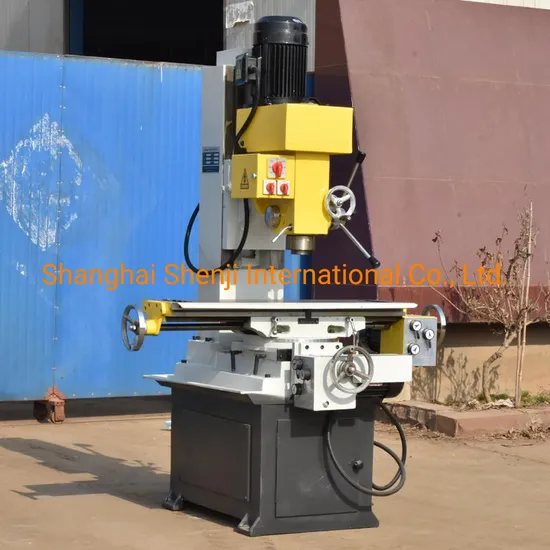

Small Vertial Milling Machine Gear Head Milling Drilling Machine Xz50c

Product Description

small vertial milling machine gear head Milling drilling Machine XZ50C The main performance characteristics:: 1 Universal use as milling machines and drill press
2. Easily shiftable gear drive ensures power transmission without losses
3. With v-belt spindle drive
4. Head swivels into the horizontal level on both sided via crank and toothed gear, easy activation of manual micro-feed for the spindle quill
5. Spindle and quill with large diameter, radial and axial bearing allows use for milling machines
6. Milling table swivels horizontally, including scale
7. Dovetail guides on all 3 axes
8. Head, table height can be adjusted through gear rack
9. Forward/reverse setting through motor switch
Application:
Widely used in single or batch is machinery manufacturing industry; instrument; building decoration and repair department. Product main technical parameters:

pecifications	ZX50C
Max.drilling dia.(mm)	50
Max.end milling width(mm)	100
Max.vertical milling dia.(mm)	25
Max.taopping dia.	M16
Spindle speed range (r.p.m)	230-1825
Spindle travel(mm)	120
Table size(mm)	800×240
Table travel(mm)	400×230
Overall dimensions(mm)	1100×970×1650
Motor(kw)	0.85/1.5
N.W/G.W(kg)	550/650

---
