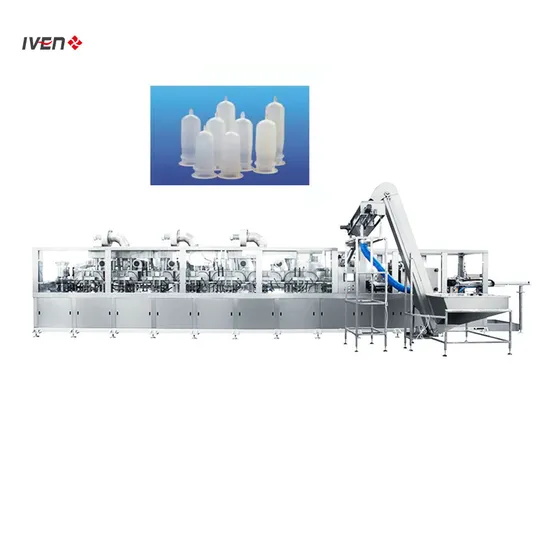

Normal Saline/IV Infusion PP Bottle Blowing Filling and Sealing Machine

Product Description

IV Fluids/IV Solution/ Normal Saline/IV Infusion PP Bottle Blowing Production Line PP Bottle Blowing Filling and Sealing Machine Bottle Blowing Turnkey Plant

01.The production line adopts closed integral chain structure, which ensures rings and other foreign objects cannot enter the chain.
02.The production of PP bottle blowing machine ranges from 4000 bottles to 15000 bottles per hour.
03.There is no air leaks through the operation process, which highly improves the blowing efficiency and shortens the bottle forming time.
04.The PP bottle washing- fling-sealing machine can precisely control the degree of deformation of the bottle after sterilization.
05.There are different types of caps that can be applied on the final bottle:Sealed Euro cap, Sealed Irrigation cap, Screwcap, Stopper and Aluminum cap.
Features:
1.High Eficiency
The PP Bottle IV Solution production line has a high capacity that ranges from 4000 bottles to 15000 bottles per hour.
2. Automatic Design
The manipulators are designed to connect mechanism, which makes it available for products to transmit to different machines.
3.Stable Performance
Owing to the closed integral chain structure and precise center distance, rings and other foreign objects can't disturb the chain.
4.Hight Quality Product
The prodcution line has a complete cleaning and sterlization function as GMP to ensure the quality of producs.
Product Parameters

Item		Machine model
		CPS 4	CPS 6	CPS 8	CPS 10	CPS 12
Production capacity	500ml	4000 BPH	6000 BPH	8000 BPH	10000 BPH	12000 BPH
Max bottle height	mm	240				230
Max preform height(with neck)	mm	120				95
Compressed air (m³/min)	8-10bar	3	3	4.2	4.2	4.5
	20bar	2.5	2.5	4.5	6.0	10-12
Chilled Water(m³/h)	10°C(pressure: 3.5-4bar)8HP	4	4	7.87	7.87	8-10
Cooling Water	25°C(pressure: 2.5-3bar)	6	10	8	8	8-10
Weight	T	7.5	11	13.5	14	15
Machine size(with Preform loading)	(L×W×H)(MM)	6500*4300*3500	8892*4800*3400	9450*4337*3400	10730x4337x3400	12960×5477×3715

Advantage: 1.Servo drive and stable during high-speed movement, the positioning is accurate, durable, and the maintenance cost is low. 2.The cam clamping fingers without plastic scrap and powder to ensure product quality.
3.High production capacity: range from 4000-15000bottles per hour.
4.Closed integral chain structure, precise center distance, rings and other foreign objects cannot enter the chain, easy maintenance.
5.The sealing does not air leak, improve the blowing efficiency, shorten the bottle forming time.
