US$12,500.00-13,800.00
|
1 Set
(MOQ)
|
Basic Info.
Type
Volumetric Filling Machine
Automatic Grade
Automatic
Filling Valve Head
Multi-Head
Feed Cylinder Structure
Multi-Room Feeding
Filling Principle
Pressure
Packaging Container Lifting Structure
Pneumatic Lifting
Packaging Material
Plastic
Usage
Quantitative Packaging of Liquid
Working Process
Forming Filling Sealing Cutting
Configuration
PLC+Touch Screen
Automaticity
Fully Automatic
Advantage
Integrated, Installation Free
Transport Package
Standard Export Wood Case
Specification
2300× 850× 1450 mm
Production Capacity
100 Set/ Year
Packaging & Delivery
Package Size
230.00cm * 85.00cm * 145.00cm
Package Gross Weight
900.000kg
Product Description
APPLICATION

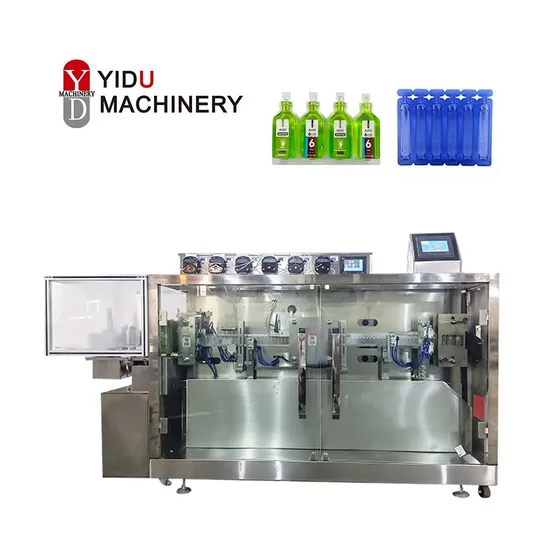

This machine is suitable for oral liquid, liquid, pesticide, perfume, cosmetics, fruit pulp, food, etc.
FEATURES1.It adopts PLC control and stepless frequency conversion speed regulation.2.The working processes such as , plastic forming, filling, batch number printing,indentation, punching and cutting are completed automatically by the program.3.The filling has no dripping, bubbling, and overflowing.4.The parts contacting with medicine all adopt high quality stainless steel material, which meets with GMP standard.5.It adopts self-control filling system of electronic peristaltic pump and mechanical filling, which have accurate metering with small error.
PRODUCT DESCRIPTION
| Model | GGS-118 |
| Cutting Frequency | 10-30 times/min |
| Forming Area | 120x110x15mm |
| Capacity volume | 1-100ml |
| Packaging Material | PVC/PE (0.2-0.4)*120mm |
| Air Pressure | 0.6-0.8Mpa |
| Total Power | 6kw |
| Power Supply | 380V/220V 50Hz/60Hz |
| Mould cooling | Tap water or recycle water |
| Overall dimension (L x W x H) | 2300×850×1450 mm |
| Weight | 900kg |
| Noise indicators | ≤75dBA |
DETAILED PHOTOSSAMPLES
PACKING &SHIPPING
Inner packing
Machines are wrapped with plastic film for protection
Outer packaging
Standard wooden case packaging for exporting
Loading
Loading goods by forklift
Port
Ningbo China / Shanghai China
OUR ADVANTAGE
OUR CERTIFICATION
>>
