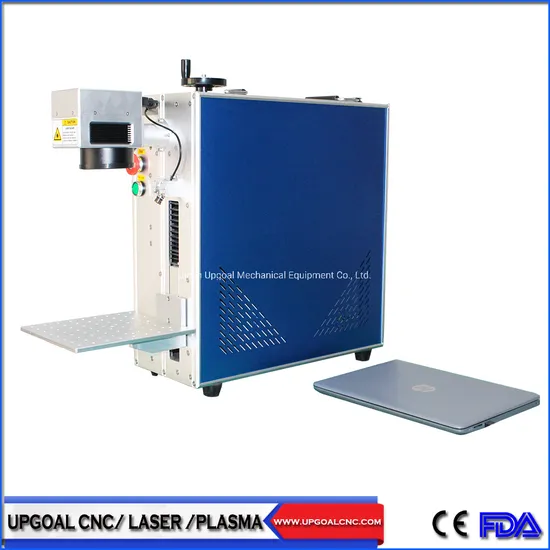

Portable Medical Apparatus and Instruments Fiber Laser Marking Machine 20W

Product Description

Desktop Mini 20W Fiber Laser Marking Machine for Stainless Steel Medical Appratus Instrument

Features
1. Adopting fiber laser to output laser, high electro-optic conversation rate, compact size, good quality velocity of light. The life time of fiber laser is more than 100,000 hours, if each year working 365 days, each day working 24 hours, then the life time is more than 10 years, are the real maintenance free, saving the later period maintenance cost.
2. Fiber laser marking machine has good facula mode, more thin single line, suitable for hyperfine processing, high system integration, less malfunction, are the real suitable for industrial processing area.
3. Original EzCad software, ensuring the stable marking
4. Marked graph and characters is permanent , will not regression due to friction.
5. No consumable, low power consumption, whole air cooling, no need water cooling, total machine power less than 1000W.
6. Not influenced by severe environment and bag weather, can continue working with accumulator when power failure.
7. One piece design of control cabinet and marking table, small cover area.
8. Adopt double read dot positioning, improving positioning precision.
9. High perpendicularity of lifting device and marking table, suitable for small workpiece fine marking.
10. Can for bar code, graph, characters, OR code, ect marking, supporting PLT, DXF, BMP such format, can useSHC, TTF word stock; System can auto encoding, auto marking serial number, batch number, and date, ect.
Technical Parameters

Maximum output laser power	20W, Raycus
Wave length of laser	1064nm
Marking scope	110*110mm
Laser sources	Fiber module
Laser Head	High speed scanning head
The minimum focus facula diameter	20μm
Minimal character	0.01mm
Control system	Original Ez cad controller with USB port
Marking depth	0.01-5mm( depends on different materials)
Marking line width	0.01-0.1mm
Marking speed	≤7000mm/s
Laser repetition frequency	20kHz~80kHz
Cooling method	Force-air Cooling
Power supply	AC 220V0±10%, 50/60Hz, single phase
Support format	PLT, BMP, DXF, JPG, TIF, AI etc
Process Material	All kinds of metal and part of Non-metal Materials
Certificate	CE

Applications
Electronic and communications products, integrated circuit chip, computer parts and electrical appliance,all kinds of precision component, hardware tool, instrument and meter, aerospace and astronautics, jewelry, horologe, gift, office supply, trademark signs, sanitary ware, kitchen ware, plastic product, metal ornament, fastener, eyeglasses frame, , sanitary ware fittings, tableware, food, beverage and alcohol & tobacco,etc all kinds of area graph and characters's, marking, mass production, marking clear and beautiful, never disappear.
Reference Working Videos
https://youtu.be/QrUmO-M7LXM
Accessories & packing

For more information, just feel free to contact us!
Jinan Upgoal Mechanical Equipment Co.,Ltd
upgoalcnc.en.made-in-china.com, Mob: +86-18353188251
