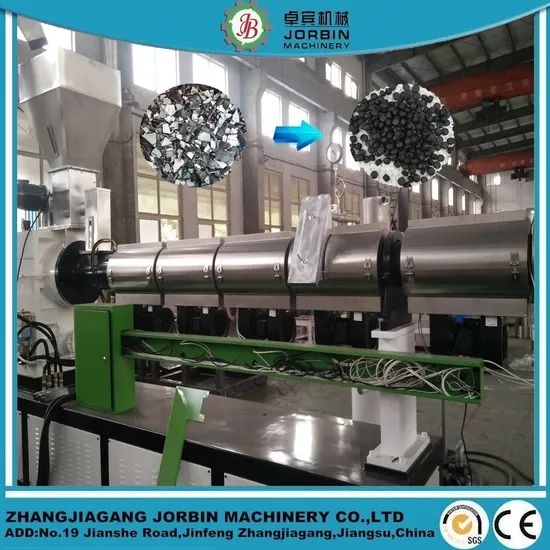

Used Waste Plastic Pipe Flakes Bottle Flakes Pelletizer Machine/Recycling Granulating Line

Product Description

Brand Jorbin Origin Zhangjiagang City/Jiangsu Province/China

Waste Plastic Bottle Flakes Recycling Granule Pellet Machine with Mother and Baby
SJ series single screw single stage/double stage extruder is mainly composed of screw and barrel ,momentum driving system,heating,cooling and electric controllers etc.It is mainly used in plasticizing and extruding of PE,PP,EVA,CPP,BOPP,PS,PPS,EPS,ABS,PA,PLApipes,plates,sheets,profiles,chips,granulates and other plastic products.
Features
1. Low energy consumption and high output;
2. Practical and reliable;
3. Water recycling, green and environmental protection;
4. Working 24 hours a day, greatly improving production efficiency;
5. The program has a high degree of automation, simple operation and stable performance;
6. Adapt to a wider range of materials;
7. Frequency conversion control;
High quality Plastic pelletizer machine
Raw material: PE PE EVA CPP BOPP PS PPS EPS ABS PA PLA rigid plastic recycling material;
Output: 150-800kg/h;
screw:single screw;
Stage:single stage/double stage;
Cutting type: pull strap like noodles;
In order to better give you professional answers, when sending the inquiry, please describe your parameters or technical requirements (such as: processing materials, output size, capacity, etc.) and attach your contact information (such as phone number, e-mail, facebook, whatsapp, wechat, etc.)
- Product Parameter -
Recycling material of this machine

Material	PE, HDPE, LDPE, LLDPE, PP, CPP, BOPP, EPS etc.
Shape	pipes,plates,sheets,profiles,Raffia,Foam, chips
Type	Loose, Bundle, Roll, Scrap
Origin	Off cut, agglomerator film, In house waste, Regrind

Can be customized
The main design output is between 100 ~ 800kg / h, according to the different needs of customers to determine the yield.

Single stage	L/D	Capacity	Motor	Double Stage	L/D	Capacity	Single Stage Motor	Second Stage Motor
SJ85				SJ85-85
SJ90				SJ90-90
SJ100	100mm	150-200kg/h	45/55kw	SJ100-100	28-10	150-200kg/h	45/55kw	22kw
SJ110				SJ110-110
SJ120	120mm	300kg/h	75kw	SJ120-120	28-10	300kg/h	75kw	22kw
SJ130	130mm	300-400kg/h	110kw	SJ130-130	28-10	300-400kg/h	110kw	45kw
SJ140				SJ140-140
SJ150	150mm	450-500kg/h	132kw	SJ150-150	28-10	450-500kg/h	132kw	55kw
SJ160	160mm	500-550kg/h	160kw	SJ160-160	28-10	500-550kg/h	160kw	55kw
SJ170				SJ170-170
SJ180	180mm	800kg/h	180kw	SJ180-180	28-10	800kg/h	180kw	75kw

- Product Information -
1,Rotary charger&Hopper:
Function: Feeding the materials into hopper(feeder)by rotary charger,then after platicizing,feed the material into the extruder equally.
features:
Speed possible controlled by inverter;
There is sight glass on the hopper(feeder),so that the material can be seen how much is in the hopper;
The material of rotary charger and hopper is SS304;
2,Extruder:
This machine uses a single screw double stage;
Function: Material come from the first stage into the second stage through the die, extruding, plasticizing, and heating different materials in order to make the materials come out of the mold more stable, which can determine the production capacity of the entire machine;
Gear box:high torque,low noise,external connect with cooling recycling system;Hard teeth face reducer;
The advantages of twin stage machine:
1. two screen changers can filter more impurity, the pressure can be reduced;
2. the capacity can be improved;
3. Material come out from the die will be much more stable, won't be broken down;
3,Hydraulic screen changer system
features:
Double positions hydraulic screen changing system, screen net 200mm
No material leaking
4,Pelletizing unit
pull strap pelletizing way:Pull strap pelletizing way is a standard pelletizing method,like noodles
water tank:The water tank has the function of moving back and forth and lifting
There is a water level drain pipe in the water tank. When the temperature of the water in the water tank is too high, it is necessary to continuously inject cold water to keep the water cool, and the excess water is discharged from the water level pipe
gale dryer:Two-channel strong wind dryer, using one blowing and one suction method, forced drying and cooling of the material strips
pelletizer:Cantilever granulator, adopts frequency conversion speed regulation
5,Wind transmission system & electrical control box
Function:loading the material into the silo;
Wind transmission system:pipe line,tee joint T,silo are made by stainless steel;the bracket is made of carbon steel;
electrical control box:
RKC Temperature controlling system and inverter control the belt conveyer, the speed of main machine and pelletizing system;
Display and protect the pressure of machine head;
SCHNEIDER Contractor, DELIXI low pressure electric equipment,pressure sensor,etc;
American CRYDOM solid-state relay;
Supply the line which connect the main machine and cabinet;
-Our Company-
We are professional manufacturer.We have made the extruder machine with 10 years of strong experience.
Our Company is special in producting plastic recycling granulating machine and extrusion machine etc.In the field of plastic recycling, Jorbin Machinery can provide you with a series of high-quality recycling production lines for recycling various plastics.
At present,some of our products are in the factory,you are welcome to visit our factory anytime!
Our machine have been sold to all of the world like Russia, Poland, Dubai, Malysia, Taland, India, Mexico, Ecuador and so on.
Welcome to receive your inquiry!
We supply below necessary documents with the machine:
Machine layout Electricity diagram Machine certificate General manual book/maintenance book

---
